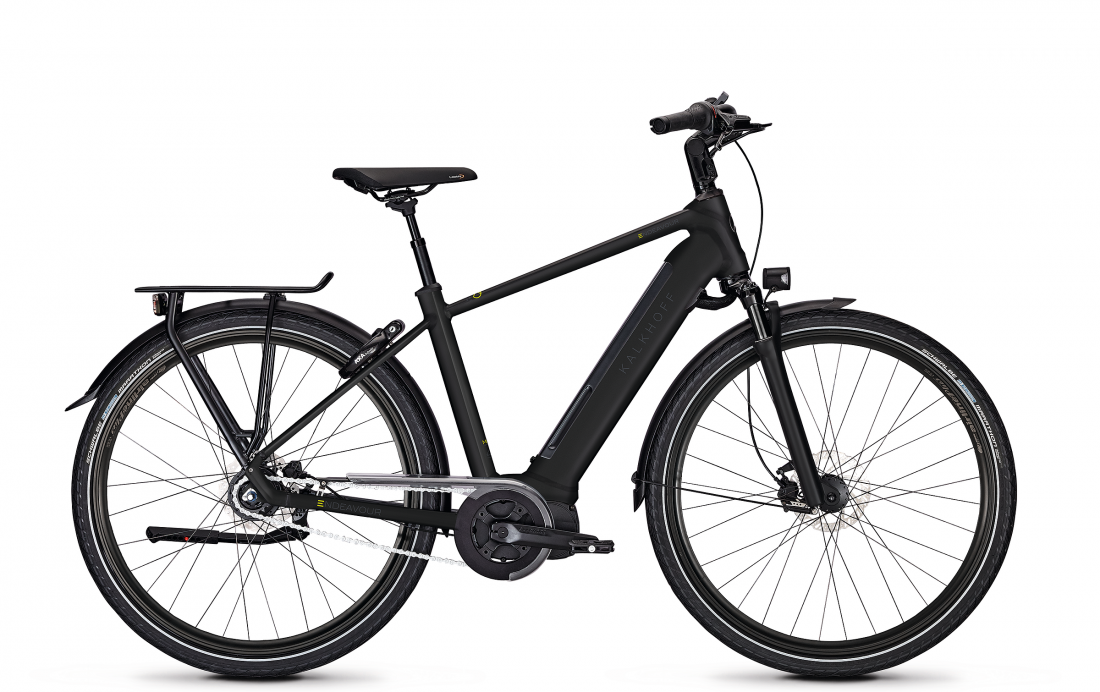

IMAGE 5.I XXL
As low as
-
Features
Get connected
The display includes a USB port so you can charge your smartphone.
Smart Display
On-board computer and navigator: Both the Bluetooth module and the USB port allow you to connect up your smartphone.
The perfect guide
Free for iPhone and Android: navigation system based on tried-and-tested software.
Gear shifting under load
An adjustable shift-sensor interrupts the motor's assistance for a fractiion of a second to enable lower-wear shifting.
Freewheel to your heart´s content
This bike can be combined with derailleur gears or freewheel gear hubs.
Onwards and upwards with backpedal
This bike is designed to permit the use of a backpedal brake gear hub.
One for all
One key is enough: The keyed alike locking of frame and battery lock makes handling easier.
Beast of burden
The permissible total weight (rider / bike or e-bike / luggage) is 170 kg.
3-year warranty for energy
A three-year guarantee is provided for all Impulse motors and BMZ batteries. Online registration is required.
10-year warranty on the frame
Kalkhoff customers receive a ten-year guarantee on all (S-)pedelec frames. Online registration is required.
50 Lux
Indication of illumination level, which reveals the luminous flux (lumens) incident on a surface (m²). The higher the value, the better the level of illumination.
Specifications
| Crankset description | Concept |
| BrakeSystem | Shimano T445, hydraulic disc brake - 160 Rotor Front |
| Bottom bracket | Integraded in Drive Unit |
| Fender description | plastic, with edge protector |
| GearSystem Description | Shimano Nexus, 8-speed |
| Kickstand description | rear stand, adjustable |
| Front light type | AXA Blueline, LED |
| Max total weight | 170 kg |
| Shifter | Shimano Nexus |
| Sprocket description | Shimano |
| Rim description | Rodi Airline Plus, with eyelets |
| Motor Description | Impulse Evo RS, 36 V / 250 W, with shift sensor Technology |
| Display description | Impulse Evo Smart Compact, with bluetooth and USB charging socket |
| Battery Name | Impulse Evo Li-Ion 36 V |
Geometry
| Wheel diameter / Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Size (MM) | 430 | 480 | 530 | 580 |
| B | Effective Top Tube (MM) | 592 | 597 | 606 | 615 |
| C | Head Tube Angle (°) | 72 | 72 | 72 | 72 |
| D | Effective Seat Tube Angle (°) | 73 | 73 | 73 | 73 |
| E | Chainstay (MM) | 485 | 485 | 485 | 485 |
| F | BB Drop (MM) | 65 | 65 | 65 | 65 |
| G | Head Tube Length (MM) | 160 | 170 | 180 | 190 |
| H | Fork Length (MM) | 469 | 468 | 470 | 468 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1111 | 1117 | 1126 | 1135 |
| K | Stack (MM) | 649 | 658 | 667 | 677 |
| L | Reach (MM) | 393 | 396 | 402 | 408 |
Wheel diameter / Size
A
Size
(MM)
s
430
m
480
l
530
xl
580
B
Effective Top Tube
(MM)
s
592
m
597
l
606
xl
615
C
Head Tube Angle
(°)
s
72
m
72
l
72
xl
72
D
Effective Seat Tube Angle
(°)
s
73
m
73
l
73
xl
73
E
Chainstay
(MM)
s
485
m
485
l
485
xl
485
F
BB Drop
(MM)
s
65
m
65
l
65
xl
65
G
Head Tube Length
(MM)
s
160
m
170
l
180
xl
190
H
Fork Length
(MM)
s
469
m
468
l
470
xl
468
I
Fork Offset
(MM)
s
45
m
45
l
45
xl
45
J
Wheelbase
(MM)
s
1111
m
1117
l
1126
xl
1135
K
Stack
(MM)
s
649
m
658
l
667
xl
677
L
Reach
(MM)
s
393
m
396
l
402
xl
408
