Kenmerken

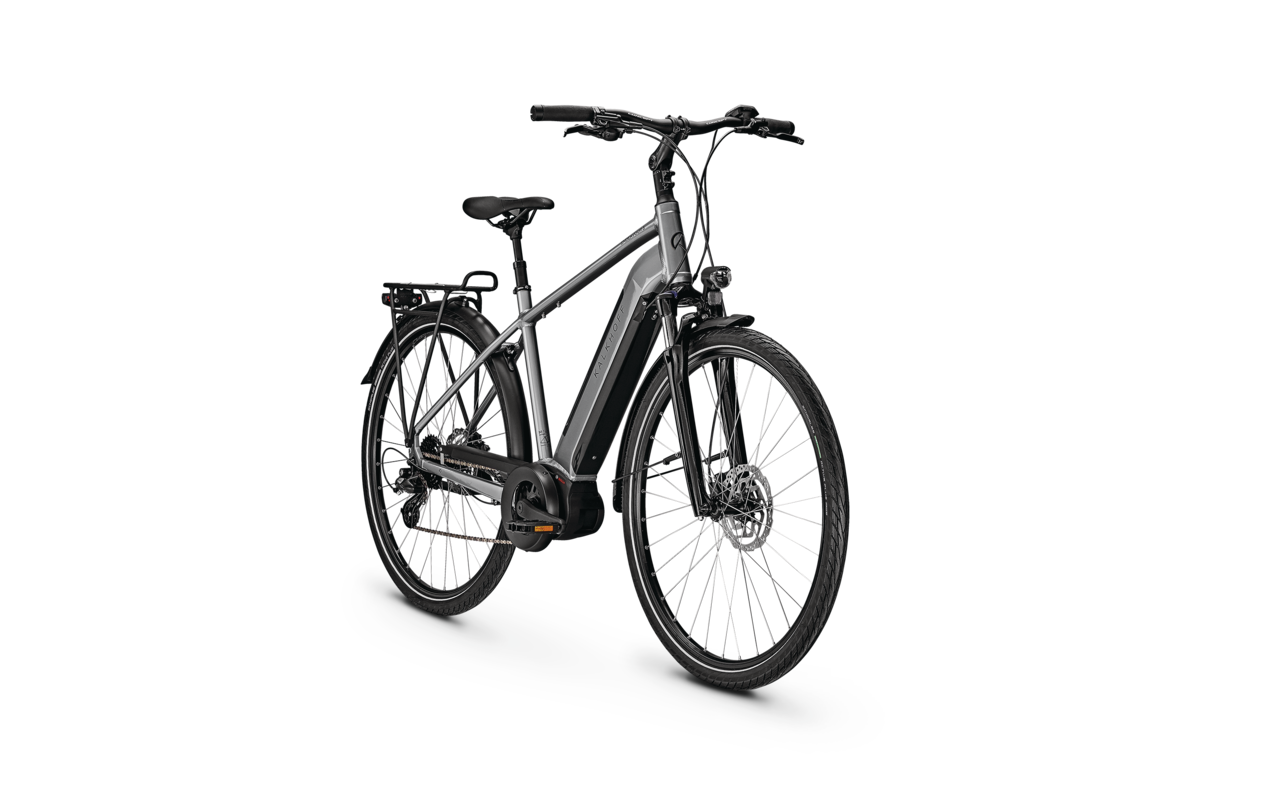

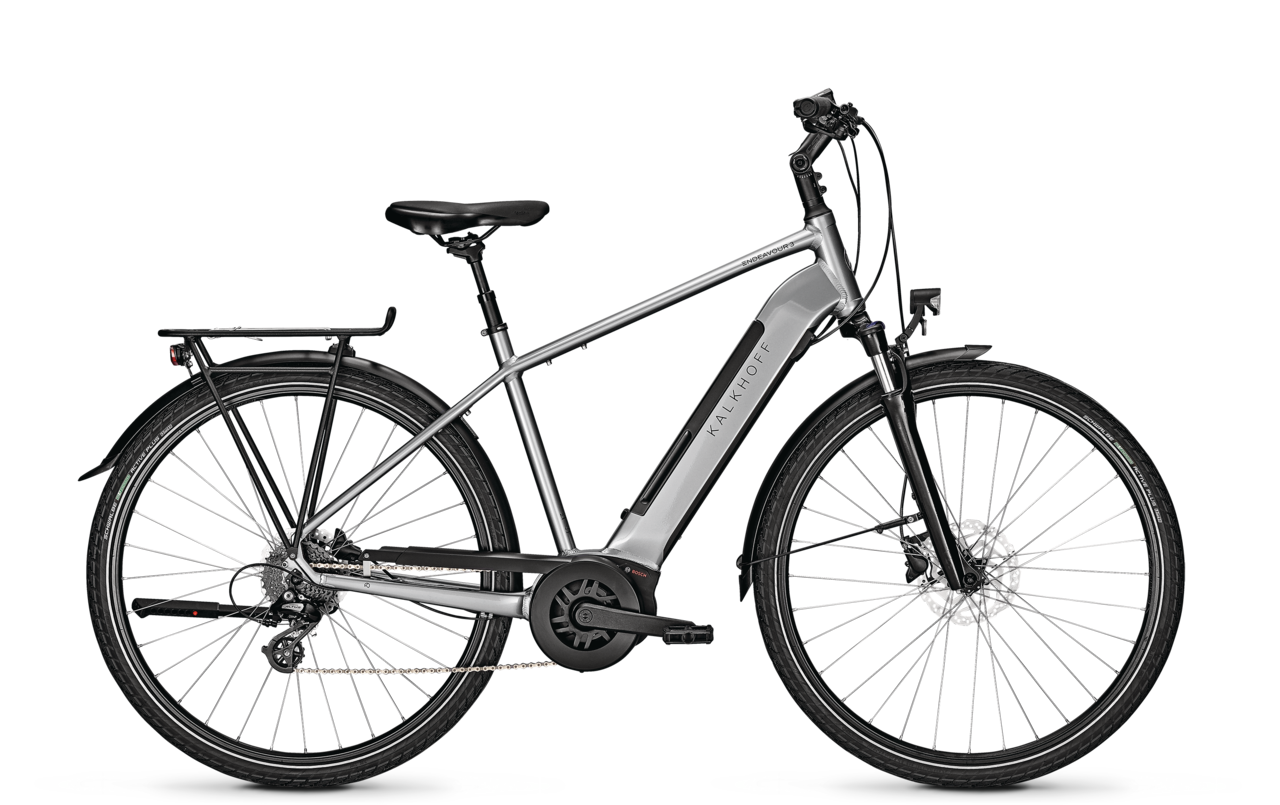

ENDEAVOUR 3.B MOVE
Een fiets die van elke reis een spannend avontuur maakt
Specificaties
Alles wat je moet weten over deze fiets
|
Motor
|
Bosch Performance Line 36 V / 250 W / 65 Nm |
|
Weergave
|
Bosch Purion, LCD display with walk assist |
|
Accu Ampère uur
|
13,4 Ah,11 Ah |
|
Accu
|
Bosch PowerTube Li-Ion 36 V |
|
Aandrijfsysteem
|
Bosch |
|
Lader
|
Bosch, 2A |
|
Schakeling
|
Shimano Altus, 8-speed |
|
Versteller
|
Shimano Altus |
|
Cranks
|
aluminium |
|
Achtertandwiel
|
Shimano Altus |
|
Overbrenging
|
- |
|
Remklauw
|
Shimano MT200, 2-piston, hydraulic disc brake |
|
Remschijf
|
180 |
|
Vorlamp
|
Herrmans MR GO, LED, 20 Lux |
|
Achterlicht
|
Herrmans H-Trace, LED |
|
Beeld
|
Integrale 0.1, aluminium |
|
Wielset
|
Nee |
|
Wielgrootte
|
28" |
|
Velgen
|
Concept, with eyelets |
|
Voorvork
|
SR Suntour NEX E25 HLO, lockout |
|
Spatbord
|
plastic, with edge protector |
|
Stuurpen
|
Concept SL, adjustable |
|
Standaard model
|
rear stand, adjustable |
|
Stuur
|
Tour, Aluminium,Concept Riser |
|
Toelaatbaar gewicht
|
130 kg |
|
Zadel
|
Selle Royal Nuvola Unitec |
|
Achterdemper
|
Nee |
|
Zadelpen
|
Patent, rigid |
|
Derailleur achter
|
Shimano Altus |
|
Pedalen
|
Comfort, aluminium |
|
Voornaaf
|
Shimano TX505, QR |
|
Trapas
|
Integriert in Mittelmotor |
|
Achternaaf
|
Shimano TX505, QR |
|
Banden
|
Schwalbe Energizer Active Plus, 47-622 |
|
Bagagedrager
|
Tour, aluminium |
|
Gewicht in kg
|
ca. 26 kg |
|
Veerweg
|
63 mm |
|
Type Versnelling
|
derailleur |
|
Remsysteem
|
schijfremmen |
|
Batterij watt-uur
|
500 Wh,400 Wh |
|
Ketting
|
KMC X8 |
|
Gewicht in kg
|
ca. 26 kg |
|
Veerweg van de voorvork
|
63 mm |
|
Grip Description
|
Herrmans Click |
| |
Wheel diameter / Size |
S |
M |
L |
XL |
|
Stand Over Height (°) |
S |
M |
L |
XL |
| A |
Grootte (MM) |
450 |
500 |
550 |
600 |
| B |
Effective Top Tube (MM) |
609 |
619 |
628 |
614 |
| C |
Head Tube Angle (°) |
72 |
72 |
72 |
72 |
| D |
Effective Seat Tube Angle (°) |
75 |
75 |
75 |
73 |
| E |
Chainstay length (MM) |
490 |
490 |
490 |
480 |
| F |
Bottom bracket drop (MM) |
65 |
65 |
65 |
65 |
| G |
Head Tube Length (MM) |
185 |
195 |
205 |
190 |
| H |
Fork construction height (MM) |
465 |
465 |
465 |
462 |
| I |
Pre-raked fork (MM) |
45 |
45 |
45 |
44 |
| J |
Wheelbase length (MM) |
1108 |
1117 |
1126 |
1128 |
| K |
Stack (MM) |
672 |
681 |
691 |
674 |
| L |
Reach (MM) |
378 |
384 |
390 |
408 |
* Subject to technical modification without notice. Errors and omissions excepted.
