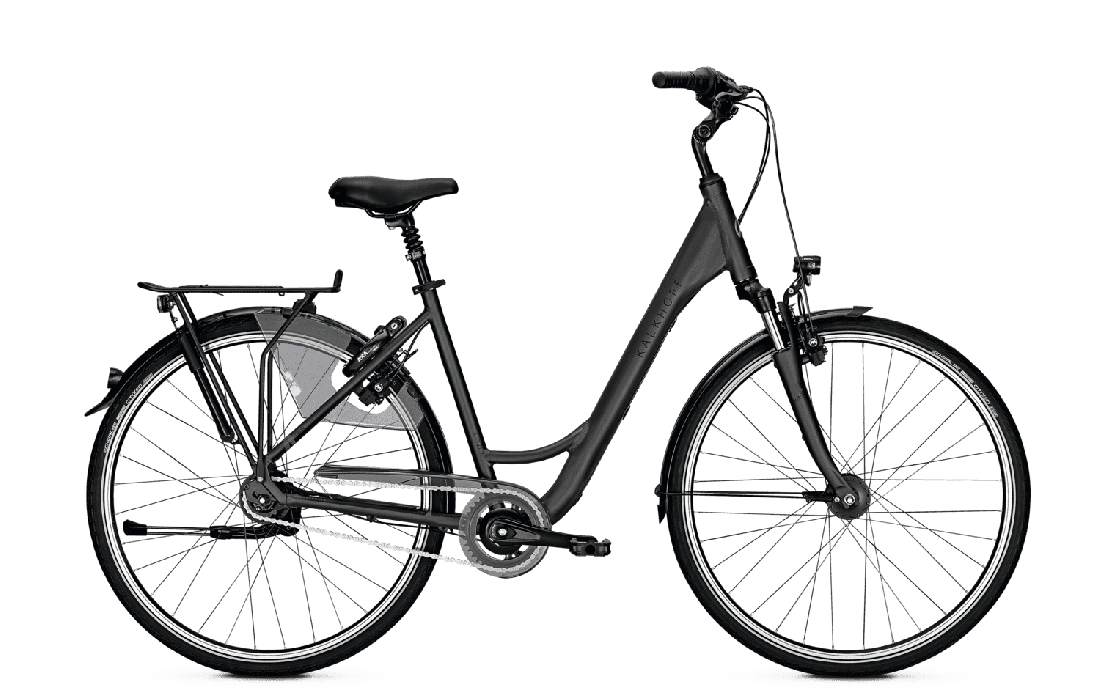

AGATTU 8 HS BLX

As low as €749.00

Specifications & Geometry

Crankset description Prowheel, Aluminium
BrakeSystem Magura HS11, hydraulische Felgenbremse
Bottom bracket BSA
Fender description Kunststoff, mit Kantenschutz
GearSystem Description 8-G Shimano Nexus
Kickstand description Hinterbauständer
Vorderlichtart AXA Blueline, LED mit Standlicht
Max total weight 130 kg
Shifter Shimano Nexus
Sprocket description Shimano, starr
Rim description Rodi Web XL, geöst

Geometry

S M L XL XXL
A Size (MM) 450 500 550 600 640
B Effective Top Tube (MM) 570 580 595 610 657
C Head Tube Angle (°) 71 71.5 71.5 71.5 73
D Effective Seat Tube Angle (°) 74 73.5 73 72.5 72
E Chainstay (MM) 465 465 465 465 465
F BB Drop (MM) 60 60 55 55 60
G Head Tube Length (MM) 135 135 170 220 240
H Fork Length (MM) 465 465 465 465 464
I Fork Offset (MM) 45 45 45 45 45
J Wheelbase (MM) 1093 1092 1104 1114 1133
K Stack (MM) 613 616 644 691 729
L Reach (MM) 394 397 398 392 420
