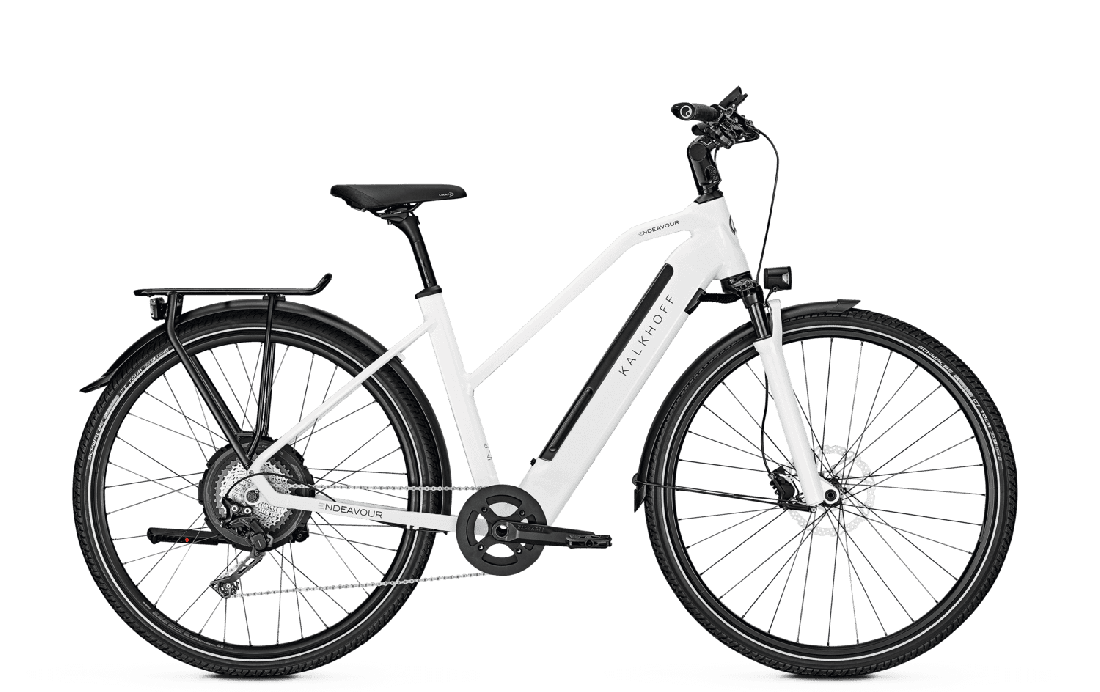

ENDEAVOUR 5.N ADVANCE

As low as -

Features

Get connected

The display includes a USB port so you can charge your smartphone.

Smart Display

On-board computer and navigator: Both the Bluetooth module and the USB port allow you to connect up your smartphone.

3-year warranty for energy

A three-year guarantee is provided for all Impulse motors and BMZ batteries. Online registration is required.

10-year warranty on the frame

Kalkhoff customers receive a ten-year guarantee on all (S-)pedelec frames. Online registration is required.

up to 120 km

You can get far - up to a maximum possible range of 120 km (at the lowest assistance level, under optimal conditions, with a fully charged battery in perfect condition and with the highest possible capacity.)

50 Lux

Indication of illumination level, which reveals the luminous flux (lumens) incident on a surface (m²). The higher the value, the better the level of illumination.

Specifications

Crankset Concept
Brakes Shimano M396, hydraulic disc brake - 180 Brake rotors
Brake rotors 180
Fender plastic, with edge protector
Shifting system Shimano SLX, 10-speed
Kickstand rear stand, adjustable
Headlight AXA Blueline, LED with stand light
Permissible Total Weight 130 kg
Rear derailleur Shimano SLX M670
Shifter Shimano SLX M7000
Rims Rodi Web
Sprocket description Shimano HG500
Boitier de pédalier BSA
Headlight Herrmans H-Black MR8, LED
Taillight AXA Blueline, LED with stand light
Motor Neodrives Z20 Pedelec, 36 V / 250 W / 40 Nm
Display BLOKS 20c, Touch-Colour-TFT with Bluetooth and USB-charging
Battery Neodrives Integrated Li-Ion 36V

Geometry

  Wheel diameter / Size S M L XL
A Size (MM) 430 480 530 580
B Effective Top Tube (MM) 588.2 597.1 606 614.9
C Head Tube Angle (°) 72 72 72 72
D Effective Seat Tube Angle (°) 73 73 73 73
E Chainstay (MM) 485 485 485 485
F BB Drop (MM) 65 65 65 65
G Head Tube Length (MM) 160 170 180 190
H Fork Length (MM) 468 468 468 468
I Fork Offset (MM) 45 45 45 45
J Wheelbase (MM) 1107.5 1116.6 1126 1134.7
K Stack (MM) 648.4 657.9 667 676.9
L Reach (MM) 390 396 402 408
Wheel diameter / Size
s
430
m
480
l
530
xl
580
s
588.2
m
597.1
l
606
xl
614.9
s
72
m
72
l
72
xl
72
s
73
m
73
l
73
xl
73
s
485
m
485
l
485
xl
485
s
65
m
65
l
65
xl
65
s
160
m
170
l
180
xl
190
s
468
m
468
l
468
xl
468
s
45
m
45
l
45
xl
45
s
1107.5
m
1116.6
l
1126
xl
1134.7
s
648.4
m
657.9
l
667
xl
676.9
s
390
m
396
l
402
xl
408
