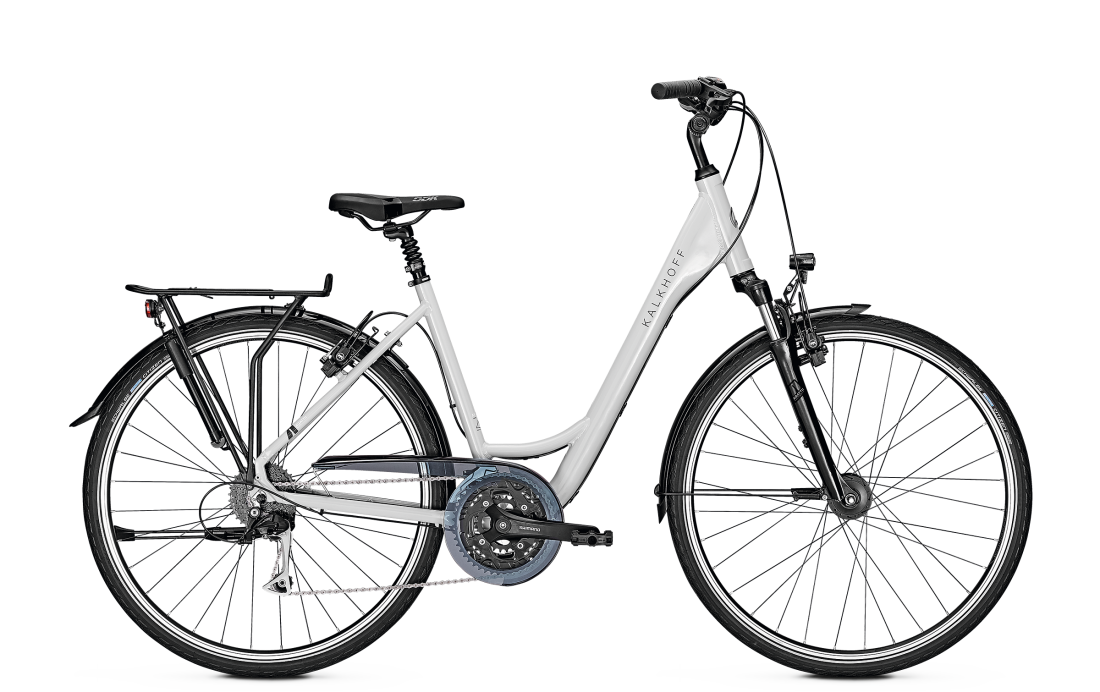

AGATTU 27 HS
As low as
SEK7,990.00
Features
See and be seen
The LED bike light is extremely bright, durable and unaffected by vibration.
Hard-wearing
The powder coating gives the frame a hard-wearing and high-quality surface.
Totally legal
The model satisfies the specifications set down in the Road traffic Licensing Regulations (StVZO).
20 Lux
Indication of illumination level, which reveals the luminous flux (lumens) incident on a surface (m²). The higher the value, the better the level of illumination.
Specifications
| Crankset description | Shimano Acera T3010 |
| BrakeSystem | Magura HS11, hydraulic rim brake |
| Bottom bracket | BSA |
| Fender description | plastic, with edge protector |
| GearSystem Description | Shimano Alivio, 27-speed |
| Kickstand description | Ursus Queen, rear stand |
| Rear light type | AXA Blueline, LED with stand light |
| Max total weight | 130 kg |
| Rear derailleur | Shimano Alivio T4000 |
| Shifter | Shimano Acera M3000 |
| Sprocket description | Shimano HG200 |
| Rim description | Concept |
Geometry
| Wheel diameter / Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Size (MM) | 450 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 570 | 580 | 595 | 610 |
| C | Head Tube Angle (°) | 71 | 71.5 | 71.5 | 71.5 |
| D | Effective Seat Tube Angle (°) | 74 | 73.5 | 73 | 72.5 |
| E | Chainstay (MM) | 465 | 465 | 465 | 465 |
| F | BB Drop (MM) | 60 | 60 | 55 | 55 |
| G | Head Tube Length (MM) | 135 | 135 | 170 | 220 |
| H | Fork Length (MM) | 465 | 465 | 465 | 465 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1093 | 1092 | 1104 | 1114 |
| K | Stack (MM) | 613 | 616 | 644 | 691 |
| L | Reach (MM) | 394 | 398 | 398 | 392 |
Wheel diameter / Size
A
Size
(MM)
s
450
m
500
l
550
xl
600
B
Effective Top Tube
(MM)
s
570
m
580
l
595
xl
610
C
Head Tube Angle
(°)
s
71
m
71.5
l
71.5
xl
71.5
D
Effective Seat Tube Angle
(°)
s
74
m
73.5
l
73
xl
72.5
E
Chainstay
(MM)
s
465
m
465
l
465
xl
465
F
BB Drop
(MM)
s
60
m
60
l
55
xl
55
G
Head Tube Length
(MM)
s
135
m
135
l
170
xl
220
H
Fork Length
(MM)
s
465
m
465
l
465
xl
465
I
Fork Offset
(MM)
s
45
m
45
l
45
xl
45
J
Wheelbase
(MM)
s
1093
m
1092
l
1104
xl
1114
K
Stack
(MM)
s
613
m
616
l
644
xl
691
L
Reach
(MM)
s
394
m
398
l
398
xl
392
