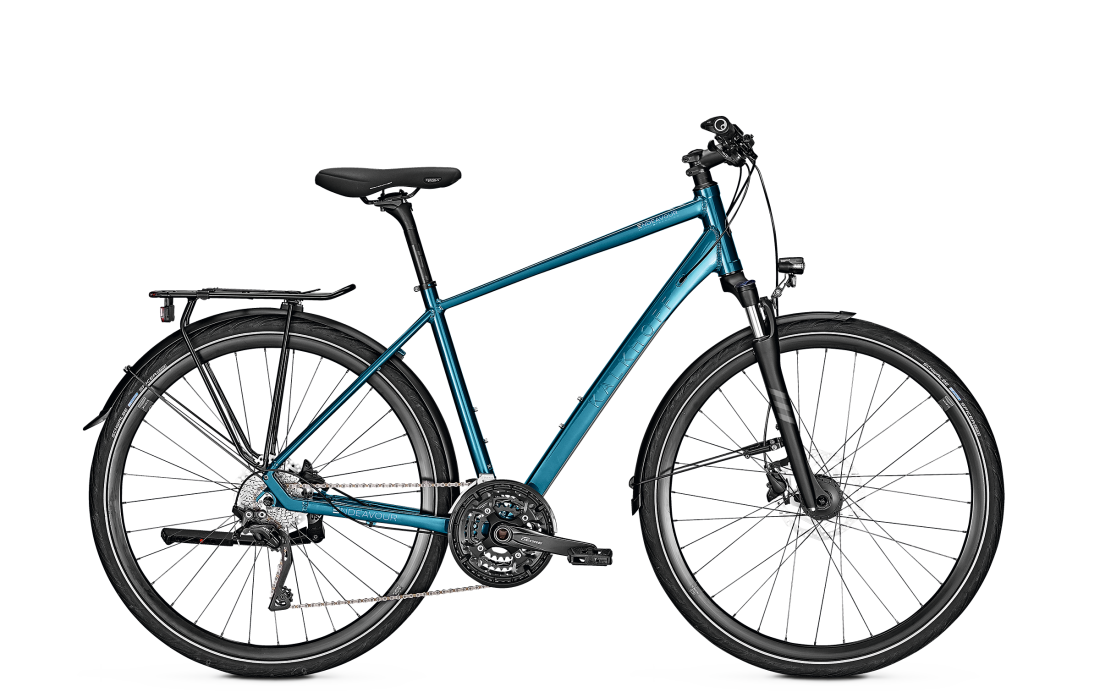

ENDEAVOUR 30
As low as
SEK11,490.00
Features
See and be seen
The LED bike light is extremely bright, durable and unaffected by vibration.
Hard-wearing
The powder coating gives the frame a hard-wearing and high-quality surface.
Totally legal
The model satisfies the specifications set down in the Road traffic Licensing Regulations (StVZO).
20 Lux
Indication of illumination level, which reveals the luminous flux (lumens) incident on a surface (m²). The higher the value, the better the level of illumination.
Specifications
| Crankset description | Shimano Deore MT6010 |
| BrakeSystem | Shimano MT200, hydraulic disc brake - 160 Rotor Front |
| Bottom bracket | BSA |
| Fender description | plastic, with edge protector |
| GearSystem Description | Shimano Deore XT, 30-speed |
| Kickstand description | rear stand, adjustable |
| Rear light type | integrated in carrier |
| Max total weight | 130 kg |
| Rear derailleur | Shimano Deore XT |
| Shifter | Shimano Deore |
| Sprocket description | Shimano HG500 |
| Rim description | Concept EX 570, easy tubeless ready |
Geometry
| Wheel diameter / Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Size (MM) | 450 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 588 | 597 | 606 | 615 |
| C | Head Tube Angle (°) | 72 | 72 | 72 | 72 |
| D | Effective Seat Tube Angle (°) | 73 | 73 | 73 | 73 |
| E | Chainstay (MM) | 455 | 455 | 455 | 455 |
| F | BB Drop (MM) | 65 | 65 | 65 | 65 |
| G | Head Tube Length (MM) | 160 | 170 | 180 | 190 |
| H | Fork Length (MM) | 465 | 465 | 465 | 465 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1077 | 1086 | 1095 | 1104 |
| K | Stack (MM) | 648 | 658 | 667 | 677 |
| L | Reach (MM) | 390 | 396 | 402 | 408 |
Wheel diameter / Size
A
Size
(MM)
s
450
m
500
l
550
xl
600
B
Effective Top Tube
(MM)
s
588
m
597
l
606
xl
615
C
Head Tube Angle
(°)
s
72
m
72
l
72
xl
72
D
Effective Seat Tube Angle
(°)
s
73
m
73
l
73
xl
73
E
Chainstay
(MM)
s
455
m
455
l
455
xl
455
F
BB Drop
(MM)
s
65
m
65
l
65
xl
65
G
Head Tube Length
(MM)
s
160
m
170
l
180
xl
190
H
Fork Length
(MM)
s
465
m
465
l
465
xl
465
I
Fork Offset
(MM)
s
45
m
45
l
45
xl
45
J
Wheelbase
(MM)
s
1077
m
1086
l
1095
xl
1104
K
Stack
(MM)
s
648
m
658
l
667
xl
677
L
Reach
(MM)
s
390
m
396
l
402
xl
408
