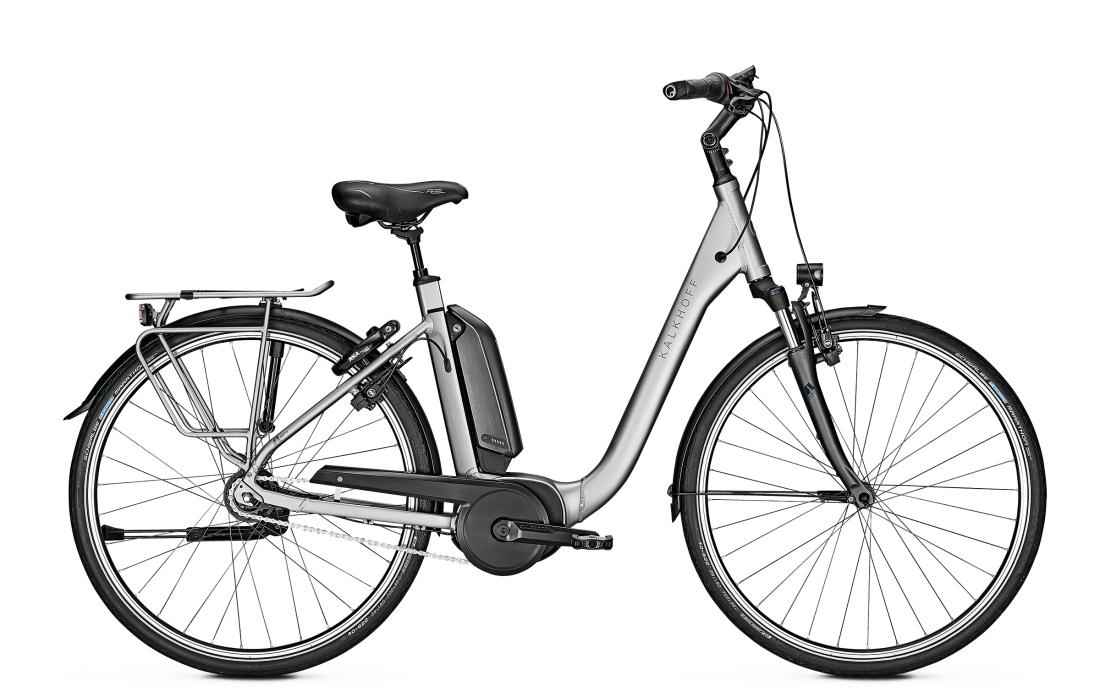

AGATTU 3.B ADVANCE

As low as -
To dealer locator
* Calculate your lease Dealer locator

Specifications

Crankset description Concept
BrakeSystem Magura HS11, hydraulic rim brake
Bottom bracket Integraded in Drive Unit
Fender description plastic, with edge protector
GearSystem Description Shimano Nexus, 8-speed
Kickstand description rear stand
Rear light type Herrmans H-Trace, LED
Max total weight 130 kg
Shifter Shimano Nexus
Sprocket description Shimano
Rim description Concept, with eyelets
Motor Description Bosch Active Line Plus, 36 V / 250 W / 50 Nm
Display description Bosch Intuvia LCD, with control panel and walk assist
Battery Name Bosch PowerPack Li-Ion 36 V

Geometry

  Wheel diameter / Size XS S M L XL
A Size (MM) 450 450 500 550 600
B Effective Top Tube (MM) 600 620 630 640 650
C Head Tube Angle (°) 71 69.5 70.5 71 71.5
D Effective Seat Tube Angle (°) 73 73.5 73.5 73.5 73.7
E Chainstay (MM) 455 488 488 488 488
F BB Drop (MM) 40 60 60 60 60
G Head Tube Length (MM) 185 185 195 207 220
H Fork Length (MM) 445 467 467 467 467
I Fork Offset (MM) 45 45 45 45 45
J Wheelbase (MM) 1111 1179 1179 1184 1191
K Stack (MM) 619 653 667 680 695
L Reach (MM) 411 425 433 438 447
Wheel diameter / Size
A Size (MM)
xs
450
s
450
m
500
l
550
xl
600
B Effective Top Tube (MM)
xs
600
s
620
m
630
l
640
xl
650
C Head Tube Angle (°)
xs
71
s
69.5
m
70.5
l
71
xl
71.5
D Effective Seat Tube Angle (°)
xs
73
s
73.5
m
73.5
l
73.5
xl
73.7
E Chainstay (MM)
xs
455
s
488
m
488
l
488
xl
488
F BB Drop (MM)
xs
40
s
60
m
60
l
60
xl
60
G Head Tube Length (MM)
xs
185
s
185
m
195
l
207
xl
220
H Fork Length (MM)
xs
445
s
467
m
467
l
467
xl
467
I Fork Offset (MM)
xs
45
s
45
m
45
l
45
xl
45
J Wheelbase (MM)
xs
1111
s
1179
m
1179
l
1184
xl
1191
K Stack (MM)
xs
619
s
653
m
667
l
680
xl
695
L Reach (MM)
xs
411
s
425
m
433
l
438
xl
447
