A bike that turns every trip into an exciting adventure
Specifications
Everything you need to know about this bike
Bike Typ
No
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Display

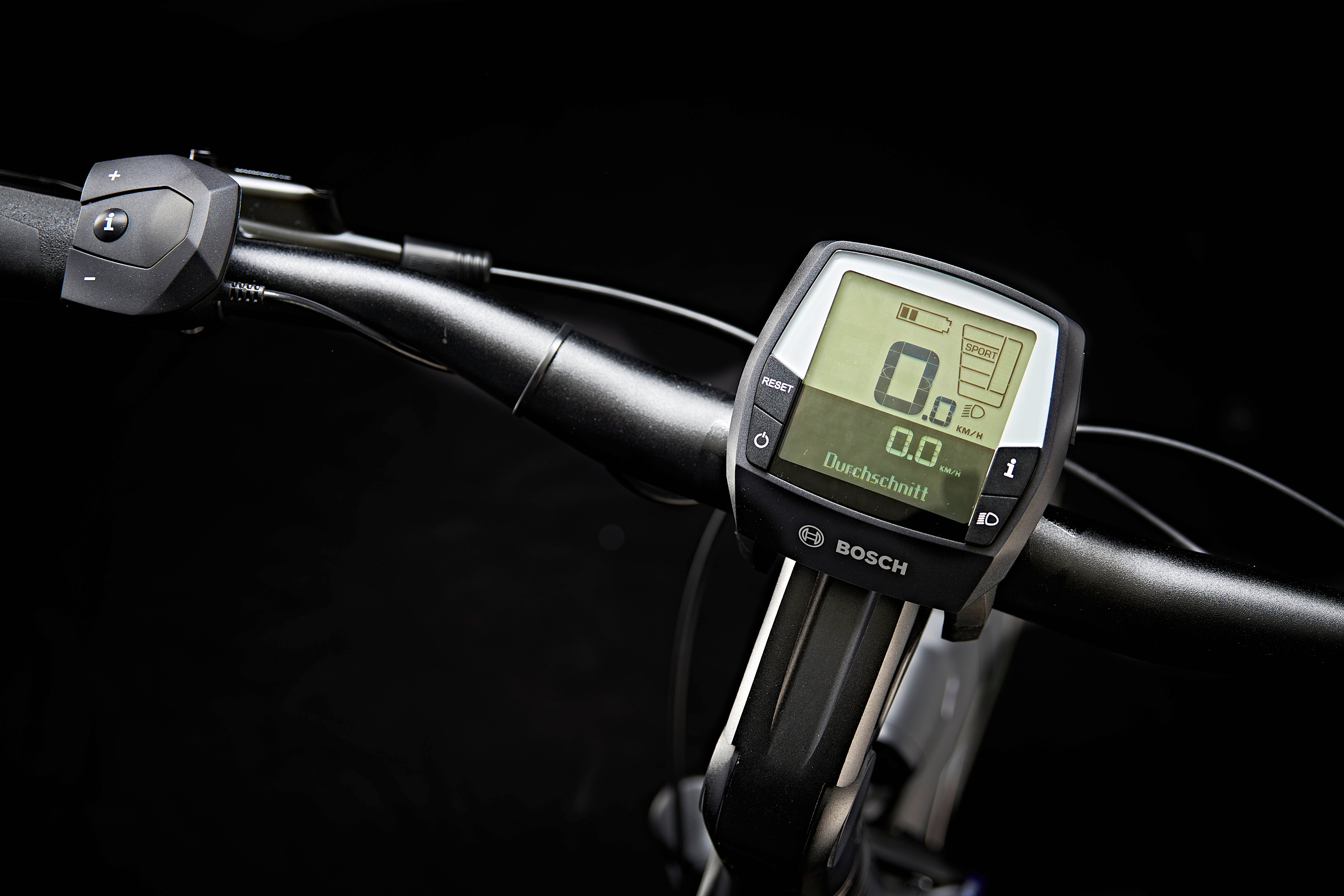

Bosch Intuvia LCD, with control panel and walk assist
Battery Ampere hours
17,4 Ah,13,4 Ah
Battery
Bosch PowerTube Li-Ion 36 V
Drive system
Bosch
Shifting system
Shimano Deore, 10-speed
Shifter
Shimano Deore
Crankset
aluminium
Rear sprocket description
No
Gear Ratio
-
Brake caliper
Shimano MT200, hydraulic disc brake
Brake rotors
180
Headlight
Herrmans H-Black MR4, LED
Taillight
Herrmans H-Trace, LED
Frame
Integrale 0.5, aluminium
Wheelset
No
Wheelsize
28"
Rims
Concept, with eyelets
Fork
SR Suntour NEX E25 HLO, lockout
Fender
plastic, with edge protector
Stem
Concept EX, adjustable
Kickstand
rear stand, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Permissible Total Weight
130 kg
Saddle
Selle Royal Nuvola
Shock
No
Seatpost
Concept EX, aluminium
Rear derailleur
Shimano Deore
Pedals
Comfort, with anti slip protection and reflector
Front Hub
Shimano TX505, QR
Bottom Bracket
Integrated in Drive Unit
Rear hub
Shimano TX505, QR
Tires
Schwalbe Energizer Active Plus, 50-622
Carrier
Tour, aluminium
Travel
50 mm
Gear System
derailleur
Brake
disc brake
Battery Watt-hours
625 Wh,500 Wh
Chain
Shimano CN-LG500
Travel of suspension fork
No
Grip Description
Herrmans Click
Wheel diameter / Size
S
M
L
XL
Stand Over Height (°)
S
M
L
XL
A
Size (MM)
480
430
480
530
B
Effective Top Tube (MM)
597.1
588
597.1
606
C
Head Tube Angle (°)
72
72
72
72
D
Effective Seat Tube Angle (°)
73
73
73
73
E
Chainstay length (MM)
485
485
485
485
F
Bottom bracket drop (MM)
65
65
65
65
G
Head Tube Length (MM)
170
160
170
180
H
Fork construction height (MM)
468
468
468
468
I
Pre-raked fork (MM)
45
45
45
45
J
Wheelbase length (MM)
1116.6
1107
1117
1126
K
Stack (MM)
657.9
648
658
667
L
Reach (MM)
396
390
396
402
* Subject to technical modification without notice. Errors and omissions excepted.
