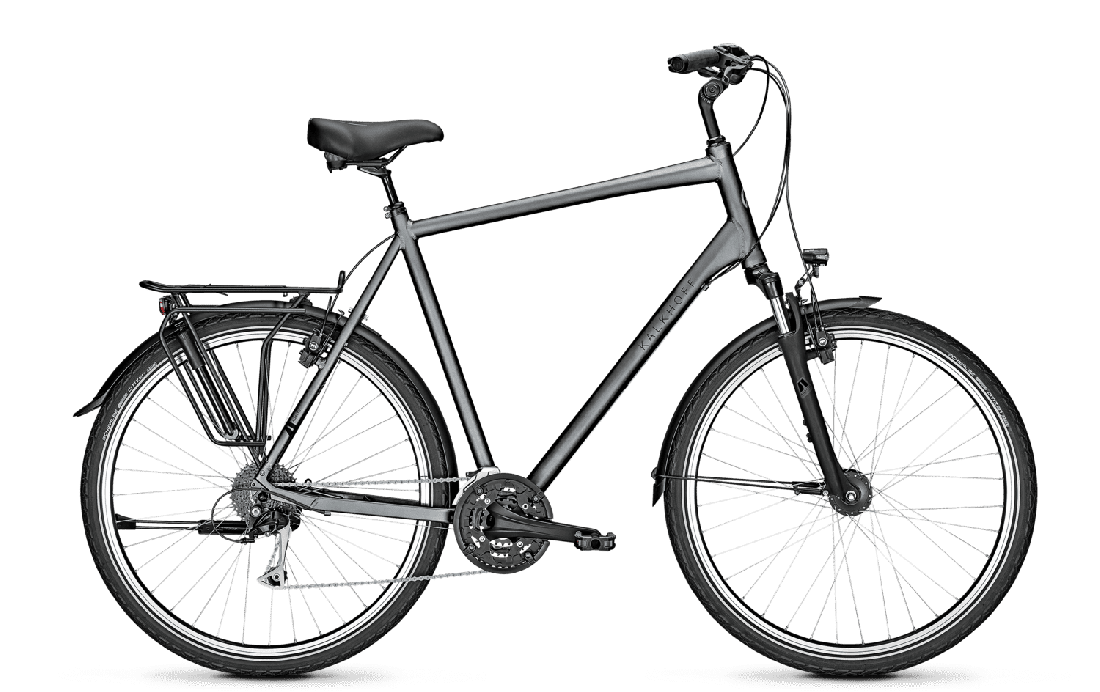

AGATTU XXL 27

As low as NOK1.00

* Calculate your lease Dealer locator

Features

See and be seen

The LED bike light is extremely bright, durable and unaffected by vibration.

Hard-wearing

The powder coating gives the frame a hard-wearing and high-quality surface.

Beast of burden

The permissible total weight (rider / bike or e-bike / luggage) is 170 kg.

Totally legal

The model satisfies the specifications set down in the Road traffic Licensing Regulations (StVZO).

222cm Icon

20 Lux

Indication of illumination level, which reveals the luminous flux (lumens) incident on a surface (m²). The higher the value, the better the level of illumination.

features

Specifications & Geometry

Crankset description	Shimano Acera MT300
BrakeSystem	Magura HS11, hydraulic rim brake
Bottom bracket	BSA
Fender description	plastic, with edge protector
GearSystem Description	Shimano Alivio, 27-speed
Kickstand description	rear stand
Rear light type	AXA Blueline, LED with stand light
Max total weight	170 kg
Rear derailleur	Shimano Alivio T4000
Shifter	Shimano Acera M3000
Sprocket description	Shimano HG200
Rim description	Rodi Web XL, with eyelets

Geometry

		S	M	L	XL	XXL
A	Size (MM)	450	500	550	600	640
B	Effective Top Tube (MM)	600	615	630	660	657
C	Head Tube Angle (°)	70.5	70.5	70.5	71.5	73
D	Effective Seat Tube Angle (°)	72.5	72.5	72.5	72.5	72
E	Chainstay (MM)	465	465	465	465	465
F	BB Drop (MM)	60	60	60	60	60
G	Head Tube Length (MM)	185	195	195	205	240
H	Fork Length (MM)	465	465	465	465	464
I	Fork Offset (MM)	45	45	45	45	45
J	Wheelbase (MM)	1108	1123	1138	1155	1133
K	Stack (MM)	666	676	676	690	729
L	Reach (MM)	390	402	417	442	420
