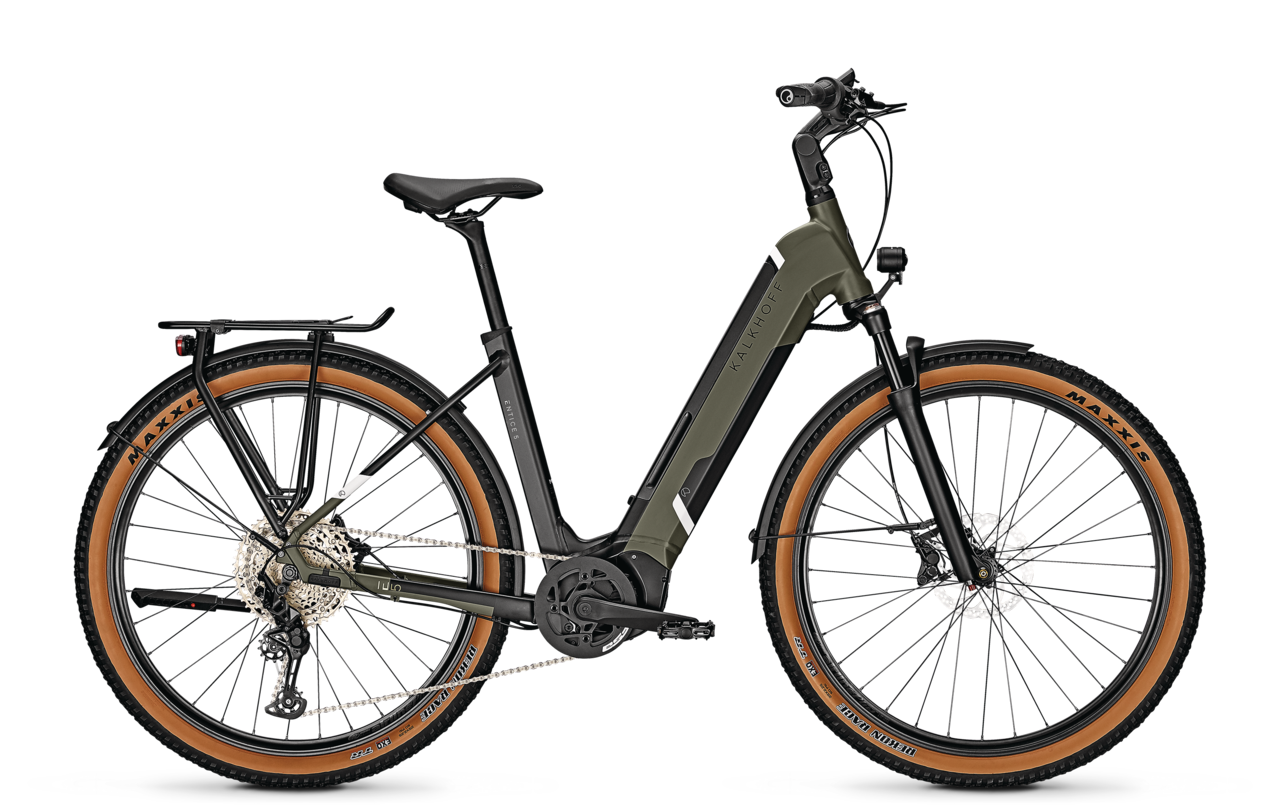

A bike that turns every trip into an exciting adventure
Specifications
Everything you need to know about this bike
Bike Typ
No
Motor
Bosch Performance Line CX, 36 V / 250 W / 85 Nm
Display
Bosch Intuvia LCD, with control panel and walk assist
Battery
Bosch PowerTube Li-Ion 36 V
Drive system
Bosch
Range
Less than 100 km,100 - 150 km
Charger
Bosch, 4A
Shifting system
Shimano SLX, 12-speed
Shifter
Shimano Deore M6100, 12-speed
Crankset
aluminium
Rear sprocket description
No
Gear Ratio
front: 38, rear: 10-51
Brake caliper
Shimano MT420, 4-piston, hydraulic disc brake
Brake rotors
180
Headlight
Litemove 110, LED
Taillight
Trelock Stop, LED
Frame
Integrale 0.6 CX, Aluminium
Wheelset
No
Rims
Road Airline Plus, with eyelets
Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Fender
plastic, with edge protector
Stem
Concept EX, adjustable
Kickstand
rear stand, adjustable
Handlebar
Concept EX Riser,Concept EX Ergo Riser
Permissible Total Weight
170 kg
Saddle
Selle Royal Vivo
Shock
No
Seatpost
Aluminium, 31.6 mm,Concept EX, aluminium
Rear derailleur
Shimano Deore SLX
Pedals
MTB Flat, aluminium, with reflector
Bottom Bracket
Integrated in Drive Unit
Tires
Maxxis Rekon Race 57-622
Carrier
Racktime System Carrier
Gear System
derailleur
Brake
disc brake
Chain
Shimano CN-LG50
Bike weight incl. battery in kg.
ca. 26 kg
Travel of suspension fork
75 mm
Grip Description
Ergon GE10
Wheel diameter / Size
S
M
L
XL
XXL
Stand Over Height (°)
S
M
L
XL
XXL
A
Size (MM)
430
480
530
580
630
B
Effective Top Tube (MM)
596
600
609
618
627
C
Head Tube Angle (°)
70.5
70.5
70.5
70.5
70.5
D
Effective Seat Tube Angle (°)
73
73
73
73
73
E
Chainstay length (MM)
494
494
494
494
494
F
Bottom bracket drop (MM)
65
65
65
65
65
G
Head Tube Length (MM)
160
170
180
190
200
H
Fork construction height (MM)
484
484
484
484
484
I
Pre-raked fork (MM)
44
44
44
44
44
J
Wheelbase length (MM)
1141
1145
1155
1164
1174
K
Stack (MM)
657
667
676
686
695
L
Reach (MM)
395
396
402
408
414
* Subject to technical modification without notice. Errors and omissions excepted.
Your security package
Warranty
Our proven quality "Made in Germany" – In addition to the 10-year warranty on all e-bike and S-Pedelec frames, we are offering to extend the 2-year warranty by a further 12 months for all Impulse motors and BMZ power packs manufactured from 2017 onwards and purchased on or after 1 August 2017.
Kalkhoff has one of the most modern and largest test laboratories in Europe. Frames, forks, seat supports, wheels, brakes and other components are tested on 30 machines spread over 40 square metres - up to 2,000 parts a year.
