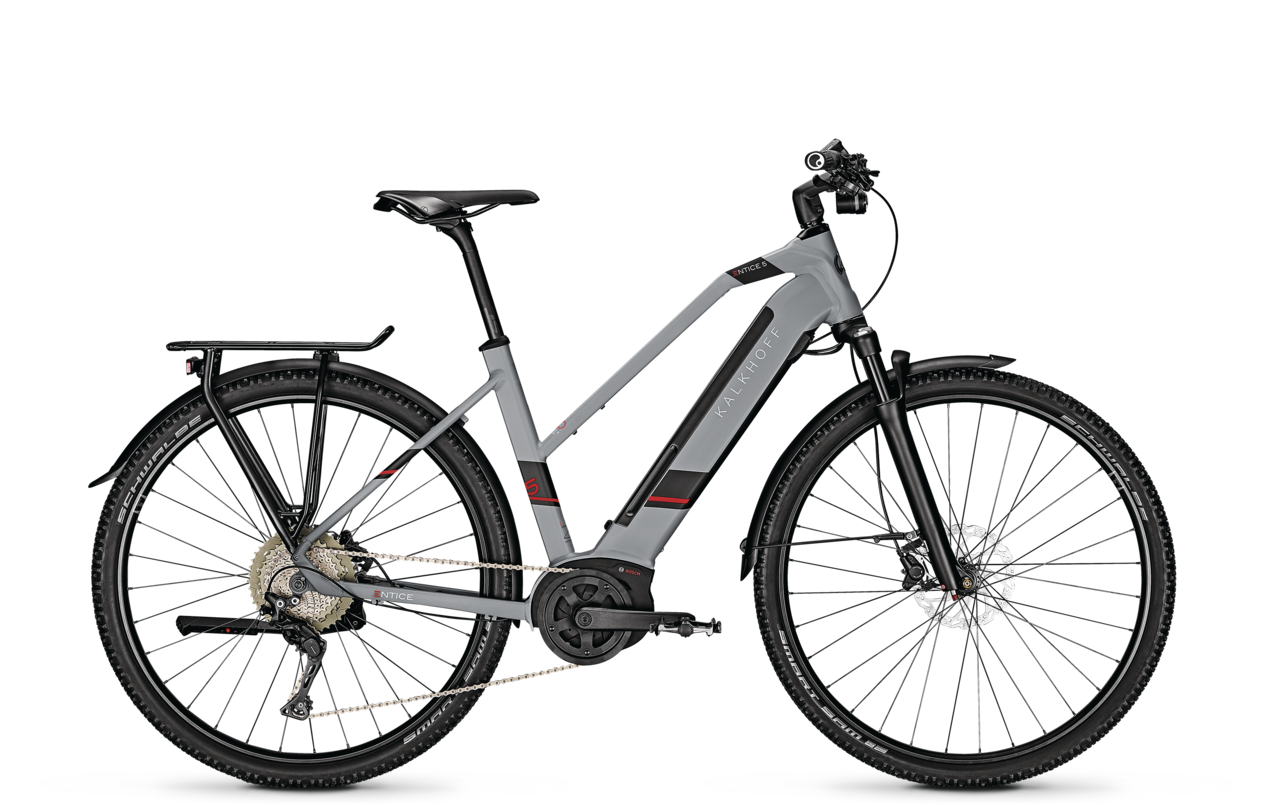

Fully equipped trekking crossover suitable for everyday use
Exclusive handlebar stem unit with integrated cables
Subtle comfort from the Suntour Mobie25 air-sprung suspension fork
New sporty 12-speed Shimano XT shifter
Specifications
Everything you need to know about this bike
Bike Typ
No
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Display
Bosch Purion, LCD display with walk assist
Battery Ampere hours
17,4 Ah
Battery
Bosch PowerTube Li-Ion 36 V
Drive system
Bosch
Range
100 - 150 km
Charger
Bosch, 4A
Shifting system
Shimano XT, 12-speed
Shifter
Shimano SLX
Crankset
aluminium
Rear sprocket description
Shimano SLX M7100, 12-speed
Gear Ratio
front: 38, rear: 10-45
Brakes
Shimano MT420, 4-piston, hydraulic disc brake
Brake rotors
180
Headlight
Trelock Airflow
Taillight
Busch & Müller integrated in carrier
Frame
Integrale 0.5, aluminium
Wheelset
No
Rims
RODI Blackrock, geöst
Wheelsize
28"
Fender
plastic, with edge protector
Fork
Suntour Mobie25 Air, lockout, 15 mm thru axle
Kickstand
rear stand, adjustable
Stem
Concept EX, adjustable
Handlebar
Kalkhoff One Piece, Riser,Concept EX Riser
Permissible Total Weight
130 kg
Saddle
Selle Royal Rampage,Selle Royal Verve,Selle Royal Vivo
Shock
No
Rear derailleur
Shimano Deore XT
Seatpost
Concept EX, aluminium
Pedals
MTB Flat, aluminium, with reflector
Front Hub
Shimano Alivio MT400, 15x100 mm with QR
Bottom Bracket
Integrated in Drive Unit
Rear hub
Shimano Microspline MT510, 12x142 mm thru axle
Tires
Schwalbe Smart Sam, 47-622
Carrier
Racktime System Carrier
Travel
63 mm
Brake
disc brake
Gear System
derailleur
Battery Watt-hours
625 Wh
Chain
Shimano SLX M7100, 12-speed
Travel Fork
50 mm
Grip Description
Ergon GE10
Wheel diameter / Size
S
M
L
XL
Stand Over Height (°)
S
M
L
XL
A
Size (MM)
430
480
530
580
B
Effective Top Tube (MM)
588.2
597.1
606
614.9
C
Head Tube Angle (°)
72
72
72
72
D
Effective Seat Tube Angle (°)
73
73
73
73
E
Chainstay length (MM)
485
485
485
485
F
Bottom bracket drop (MM)
65
65
65
65
G
Head Tube Length (MM)
160
170
180
190
H
Fork construction height (MM)
468
468
468
468
I
Pre-raked fork (MM)
45
45
45
45
J
Wheelbase length (MM)
1107.5
1116.6
1125.7
1125.7
K
Stack (MM)
648.4
657.9
667.4
676.9
L
Reach (MM)
390
396
402
408
