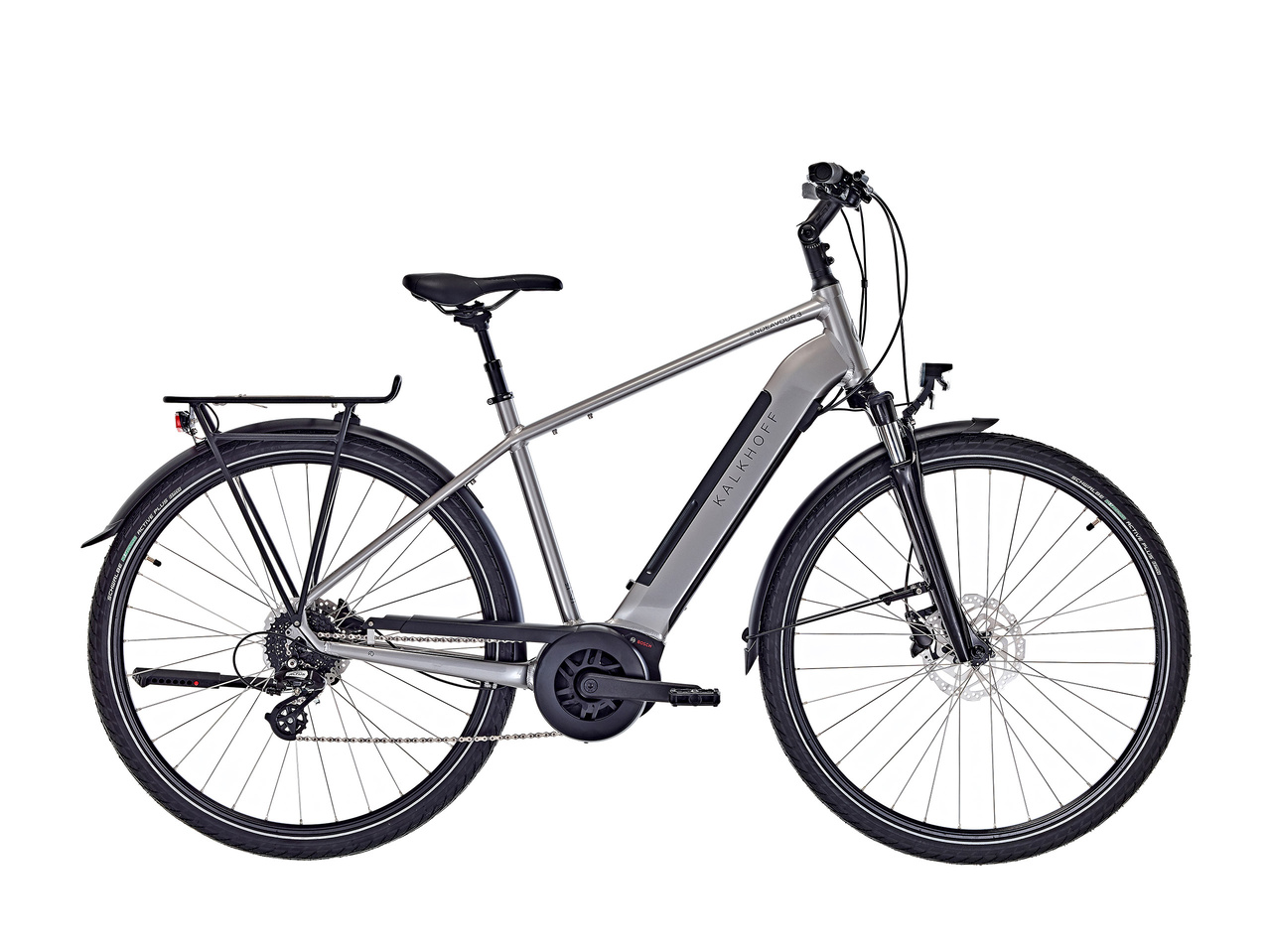

A bike that turns every trip into an exciting adventure
Specifications
Everything you need to know about this bike
Bike Typ
No
Motor
Bosch Performance Line 36 V / 250 W / 65 Nm
Display
Bosch Purion, LCD display with walk assist
Battery Ampere hours
13,4 Ah,11 Ah
Battery
Bosch PowerTube Li-Ion 36 V
Drive system
Bosch
Range
100 - 150 km,Less than 100 km
Charger
Bosch, 2A
Shifting system
Shimano Altus, 8-speed
Shifter
Shimano Altus
Crankset
aluminium
Rear sprocket description
Shimano Altus
Gear Ratio
-
Brake caliper
Shimano MT200, 2-piston, hydraulic disc brake
Brake rotors
180
Headlight
Herrmans MR GO, LED, 20 Lux
Taillight
Herrmans H-Trace, LED
Frame
Integrale 0.1, aluminium
Wheelset
No
Wheelsize
28"
Rims
Concept, with eyelets
Fork
SR Suntour NEX E25 HLO, lockout
Fender
plastic, with edge protector
Stem
Concept SL, adjustable
Kickstand
rear stand, adjustable
Handlebar
Tour, Aluminium,Concept Riser
Permissible Total Weight
130 kg
Saddle
Selle Royal Nuvola Unitec
Shock
No
Seatpost
Patent, rigid
Rear derailleur
Shimano Altus
Pedals
Comfort, aluminium
Front Hub
Shimano TX505, QR
Bottom Bracket
Integrated in Drive Unit
Rear hub
Shimano TX505, QR
Tires
Schwalbe Energizer Active Plus, 47-622
Carrier
Tour, aluminium
Bike weight incl. battery in kg.
ca. 26 kg
Travel
63 mm
Gear System
derailleur
Brake
disc brake
Battery Watt-hours
500 Wh,400 Wh
Chain
KMC X8
Bike weight incl. battery in kg.
ca. 26 kg
Travel of suspension fork
63 mm
Grip Description
Herrmans Click
Wheel diameter / Size
S
M
L
XL
Stand Over Height (°)
S
M
L
XL
A
Size (MM)
450
500
550
600
B
Effective Top Tube (MM)
609
619
628
614
C
Head Tube Angle (°)
72
72
72
72
D
Effective Seat Tube Angle (°)
75
75
75
73
E
Chainstay length (MM)
490
490
490
480
F
Bottom bracket drop (MM)
65
65
65
65
G
Head Tube Length (MM)
185
195
205
190
H
Fork construction height (MM)
465
465
465
462
I
Pre-raked fork (MM)
45
45
45
44
J
Wheelbase length (MM)
1108
1117
1126
1128
K
Stack (MM)
672
681
691
674
L
Reach (MM)
378
384
390
408
* Subject to technical modification without notice. Errors and omissions excepted.
