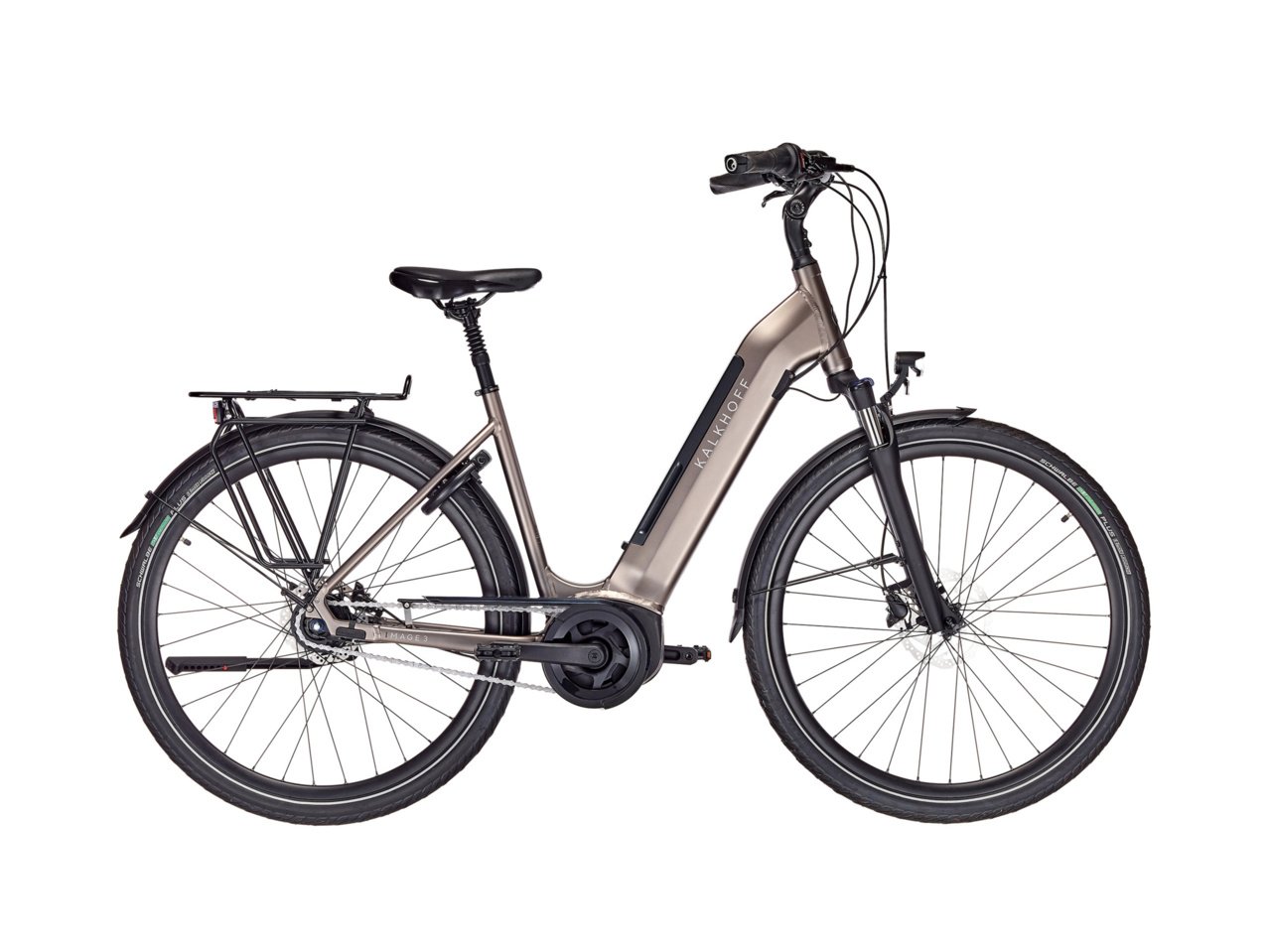

Exemplary bike presentation. Actual parts are shown in the specifications list.
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
Gallery
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
IMAGE 3.B MOVE
Exemplary bike presentation. Actual parts are shown in the specifications list.
Exemplary bike presentation. Actual parts are shown in the specifications list.

IMAGE 3.B MOVE

From €3,099.00
Dealer locator
  • Bosch Active Line Plus motor with 50 Nm, for easy handling
  • Integrated Bosch PowerTube battery with choice of 500 or 400 Watt hour capacity
  • Range up to 140 km*
  • Shimano MT200 hydraulic disk brakes
Specifications Dealer locator Compare bike
Specifications

Everything you need to know about this bike

Motor Bosch Active Line Plus, 36 V / 250 W / 50 Nm
Display Bosch Purion, LCD display with walk assist
Battery Ampere hours 13,4 Ah,11 Ah
Battery Bosch PowerTube Li-Ion 36 V
Drive system Bosch
Charger Bosch, 4A,Bosch, 2A
Shifting system Shimano Nexus, 8-speed
Shifter Shimano Nexus
Crankset aluminium
Rear sprocket description No
Gear Ratio front: 38, rear: 19
Brake caliper Shimano MT200, hydraulic disc brake
Brake rotors 180
Headlight Herrmans MR GO, LED, 20 Lux
Taillight Herrmans H-Trace, LED
Frame Integrale 0.1, aluminium
Wheelset No
Wheelsize 28"
Rims High Profile, with eyelets, aluminum
Fork SR Suntour NEX E25 HLO, lockout
Fender plastic, with edge protector
Stem Aluminium, adjustable
Kickstand rear stand, adjustable
Handlebar Tour, Aluminium
Permissible Total Weight 130 kg
Saddle Selle Royal Nuvola Unitec
Shock No
Seatpost Patent, suspension
Rear derailleur No
Pedals Comfort, aluminium
Front Hub Shimano TX505, QR
Bottom Bracket No
Rear hub Shimano Nexus, 8 speed
Tires Schwalbe Energizer Plus Performance, 50-622
Carrier Tour, aluminium
Bike weight incl. battery in kg. ca. 28 kg,ca. 27,5 kg
Travel 63 mm
Gear System gearhub
Brake disc brake
Battery Watt-hours 500 Wh,400 Wh
Chain KMC Z1 EPT, anti-rust coating
Bike weight incl. battery in kg. ca. 28 kg,ca. 27,5 kg
Travel of suspension fork 63 mm
Grip Description Ergon GC10
  Wheel diameter / Size S M L XL
Stand Over Height (°) S M L XL
A Size (MM) 450 500 550 600
B Effective Top Tube (MM) 609 619 628 408
C Head Tube Angle (°) 72 72 72 72
D Effective Seat Tube Angle (°) 75 75 75 73
E Chainstay length (MM) 490 490 490 480
F Bottom bracket drop (MM) 65 65 65 65
G Head Tube Length (MM) 185 195 205 190
H Fork construction height (MM) 465 465 465 462
I Pre-raked fork (MM) 45 45 45 44
J Wheelbase length (MM) 1108 1117 1126 1128
K Stack (MM) 672 681 691 674
L Reach (MM) 378 384 390 408
* Subject to technical modification without notice. Errors and omissions excepted.
