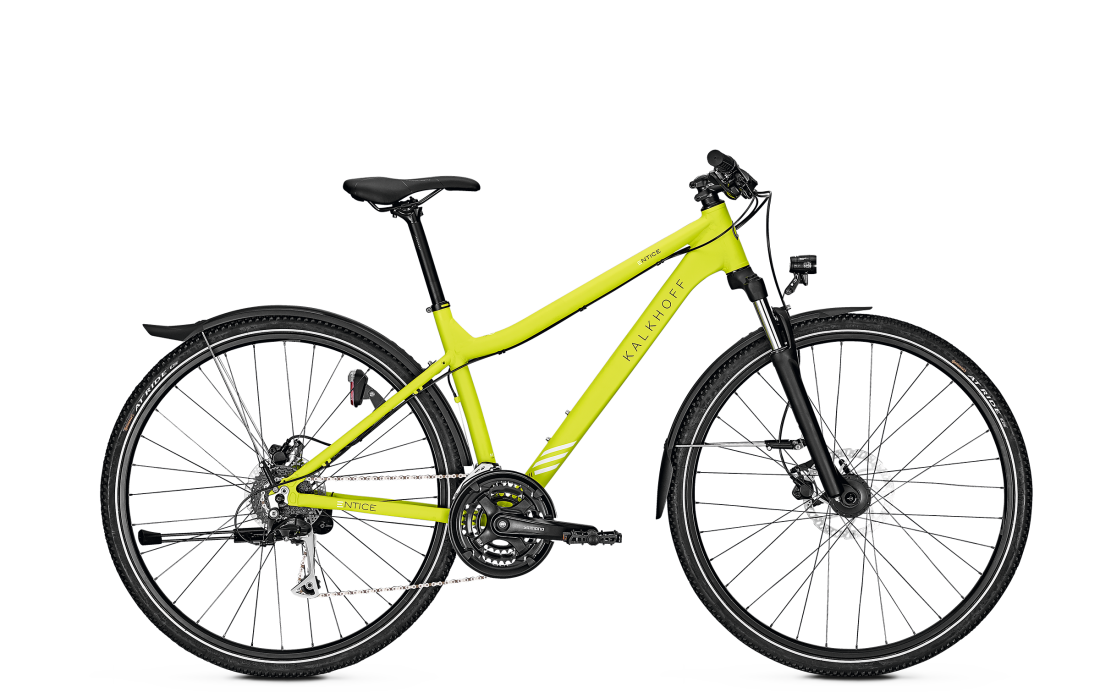

ENTICE 24

ab -

Specifications

Kurbelgarnitur Beschreibung Shimano TY701
Bremssystem Tektro M285, hydraulische Scheibenbremse - 160 Bremsscheiben
Bottom bracket BSA
Schutzblech Beschreibung Steckschutzblech
Schaltung 24-G Shimano Alivio
Fahrradständer Beschreibung Aluminium Hinterbauständer
Vorderlichtart Büchel Beetle, LED mit Standlicht
Zulässiges Gesamtgewicht 130 kg
Umwerfer hinten Shimano Alivio T4000
Schalthebel Shimano Altus M310
Zahnkranz Shimano HG31
Felgen Rodi Black Rock, geöst

Geometrie

  Wheel diameter / Size XS S M L
A Große (MM) 400 440 480 520
B Effective Top Tube (MM) 570 588 608 629
C Head Tube Angle (°) 69 69 69 69
D Effective Seat Tube Angle (°) 73.5 73.5 73.5 73.5
E Chainstay (MM) 430 430 430 430
F BB Drop (MM) 48 48 48 48
G Head Tube Length (MM) 110 120 140 160
H Fork Length (MM) 487 487 487 487
I Fork Offset (MM) 44 44 44 44
J Wheelbase (MM) 1079 1097 1119 1141
K Stack (MM) 570 602 620 639
L Reach (MM) 394 410 425 440
Wheel diameter / Size
xs
400
s
440
m
480
l
520
xs
570
s
588
m
608
l
629
xs
69
s
69
m
69
l
69
xs
73.5
s
73.5
m
73.5
l
73.5
xs
430
s
430
m
430
l
430
xs
48
s
48
m
48
l
48
xs
110
s
120
m
140
l
160
xs
487
s
487
m
487
l
487
xs
44
s
44
m
44
l
44
xs
1079
s
1097
m
1119
l
1141
xs
570
s
602
m
620
l
639
xs
394
s
410
m
425
l
440
