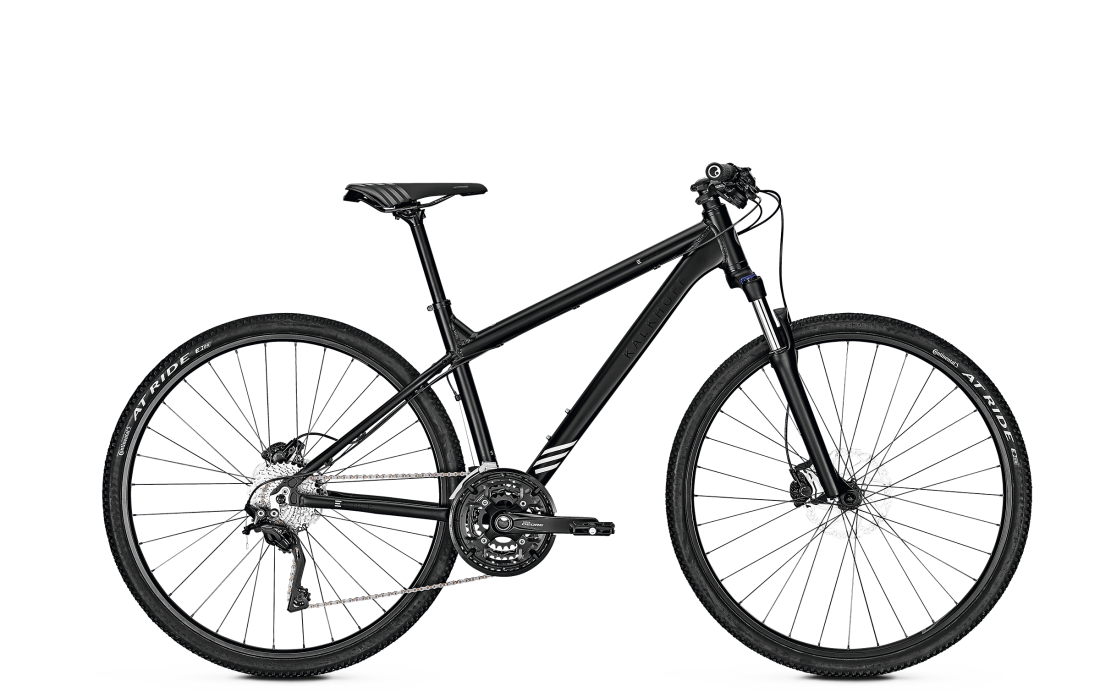

ENTICE 30
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Shimano Deore T6010 |
| Bremssystem | Shimano Deore M6000, hydraulische Scheibenbremse - 160 Bremsscheiben |
| Bottom bracket | BSA |
| Schaltung | 30-G Shimano Deore XT |
| Zulässiges Gesamtgewicht | 130 kg |
| Umwerfer hinten | Shimano Deore XT T8000 |
| Schalthebel | Shimano Deore T6000 |
| Zahnkranz | Shimano HG500 |
| Felgen | Rodi Black Rock, geöst |
Geometrie
| Wheel diameter / Size | XS | S | M | L | |
|---|---|---|---|---|---|
| A | Große (MM) | 400 | 440 | 480 | 520 |
| B | Effective Top Tube (MM) | 570 | 588 | 608 | 629 |
| C | Head Tube Angle (°) | 69 | 69 | 69 | 69 |
| D | Effective Seat Tube Angle (°) | 73.5 | 73.5 | 73.5 | 73.5 |
| E | Chainstay (MM) | 430 | 430 | 430 | 430 |
| F | BB Drop (MM) | 48 | 48 | 48 | 48 |
| G | Head Tube Length (MM) | 110 | 120 | 140 | 160 |
| H | Fork Length (MM) | 487 | 487 | 487 | 487 |
| I | Fork Offset (MM) | 44 | 44 | 44 | 44 |
| J | Wheelbase (MM) | 1079 | 1097 | 1119 | 1141 |
| K | Stack (MM) | 570 | 602 | 620 | 639 |
| L | Reach (MM) | 394 | 410 | 425 | 440 |
Wheel diameter / Size
A
Große
(MM)
xs
400
s
440
m
480
l
520
B
Effective Top Tube
(MM)
xs
570
s
588
m
608
l
629
C
Head Tube Angle
(°)
xs
69
s
69
m
69
l
69
D
Effective Seat Tube Angle
(°)
xs
73.5
s
73.5
m
73.5
l
73.5
E
Chainstay
(MM)
xs
430
s
430
m
430
l
430
F
BB Drop
(MM)
xs
48
s
48
m
48
l
48
G
Head Tube Length
(MM)
xs
110
s
120
m
140
l
160
H
Fork Length
(MM)
xs
487
s
487
m
487
l
487
I
Fork Offset
(MM)
xs
44
s
44
m
44
l
44
J
Wheelbase
(MM)
xs
1079
s
1097
m
1119
l
1141
K
Stack
(MM)
xs
570
s
602
m
620
l
639
L
Reach
(MM)
xs
394
s
410
m
425
l
440
