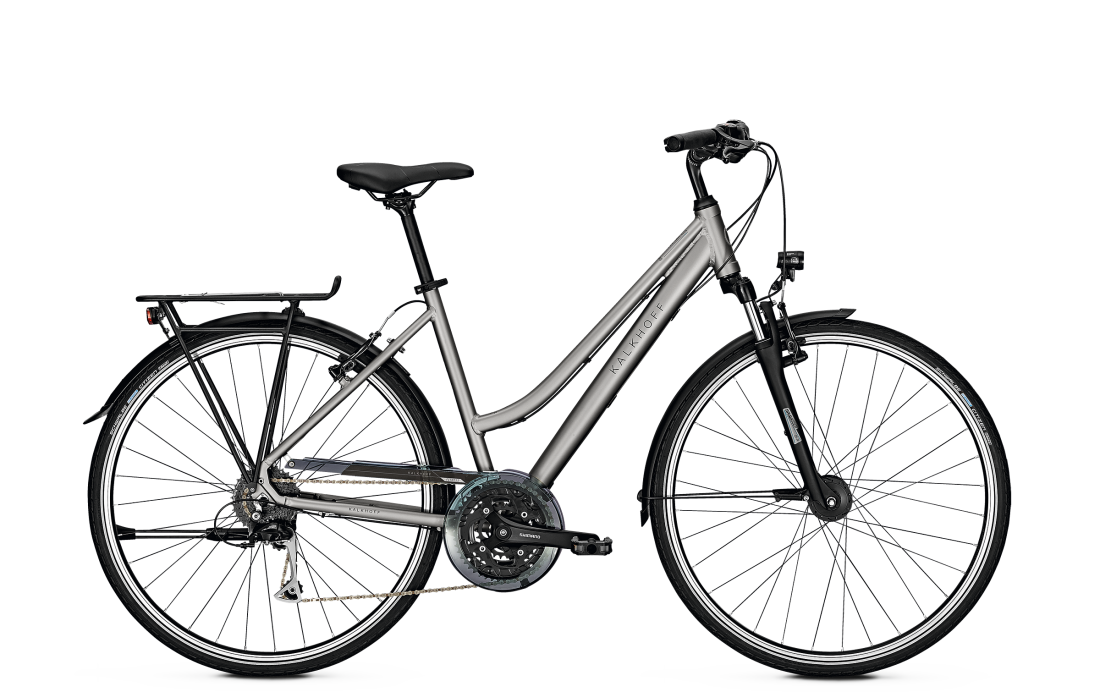

VOYAGER 27
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Shimano Acera T3010 |
| Bremssystem | Shimano Alivio T4000, V-Brake |
| Bottom bracket | BSA |
| Schutzblech Beschreibung | Kunststoff, mit Kantenschutz |
| Schaltung | 27-G Shimano Alivio |
| Fahrradständer Beschreibung | Ursus Queen Hinterbauständer |
| Vorderlichtart | AXA Blueline, LED mit Standlicht |
| Zulässiges Gesamtgewicht | 130 kg |
| Umwerfer hinten | Shimano Alivio T4000 |
| Schalthebel | Shimano Acera M3000 |
| Zahnkranz | Shimano HG200 |
| Felgen | Concept |
Geometrie
| Wheel diameter / Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Große (MM) | 450 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 570 | 580 | 595 | 610 |
| C | Head Tube Angle (°) | 71 | 71.5 | 71.5 | 71.5 |
| D | Effective Seat Tube Angle (°) | 74 | 73.5 | 73 | 72.5 |
| E | Chainstay (MM) | 465 | 465 | 465 | 465 |
| F | BB Drop (MM) | 60 | 60 | 55 | 55 |
| G | Head Tube Length (MM) | 135 | 135 | 170 | 220 |
| H | Fork Length (MM) | 465 | 465 | 465 | 465 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1093 | 1092 | 1104 | 1114 |
| K | Stack (MM) | 613 | 616 | 644 | 691 |
| L | Reach (MM) | 394 | 398 | 398 | 392 |
