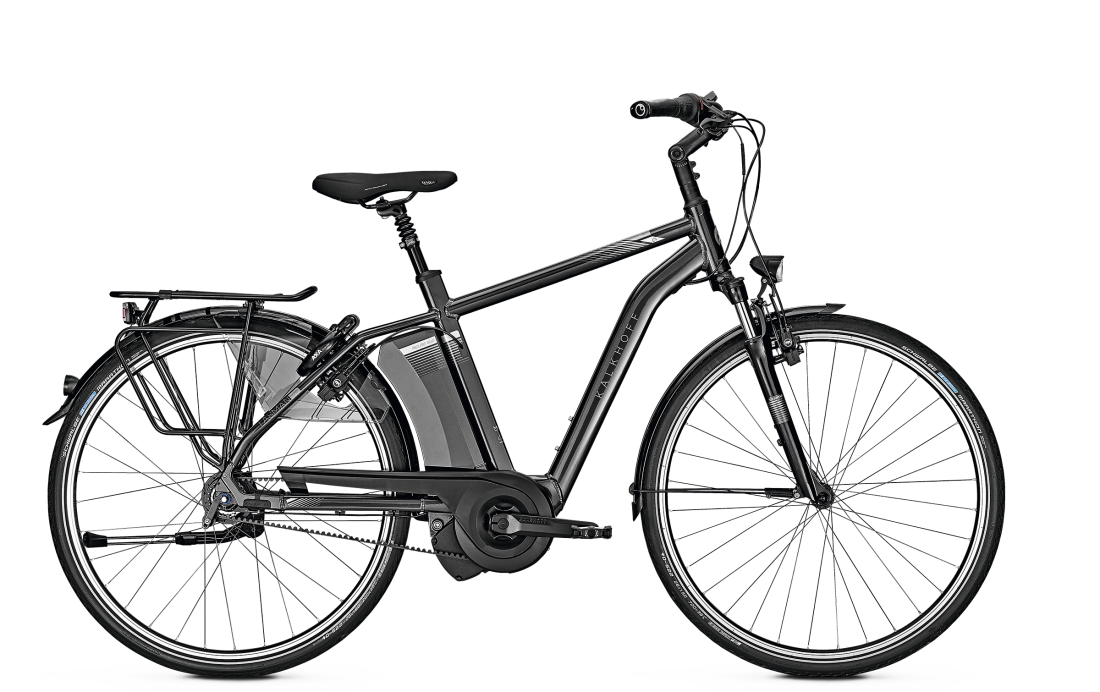

TASMAN BENELUX i8
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Concept |
| Bremssystem | Magura HS11, hydraulische Felgenbremse |
| Bottom bracket | Integriert in Mittelmotor |
| Schutzblech Beschreibung | Kunststoff, mit Kantenschutz |
| Schaltung | 8-G Shimano Nexus |
| Fahrradständer Beschreibung | Ursus Queen Hinterbauständer |
| Rücklichtart | Herrmans H-Trace, LED |
| Schalthebel | - |
| Zahnkranz | Gates Carbondrive |
| Felgen | Concept, geöst |
| Motor Description | Impulse Evo, 36 V / 250 W, mit Shift-Sensor Technologie |
| Display description | Impulse Evo Smart Compact, mit Bluetooth und USB Ladebuchse |
| Battery Name | iNext Li-Ion 36 V |
Geometrie
| Wheel diameter / Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Große (MM) | 450 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 600 | 615 | 595 | 610 |
| C | Head Tube Angle (°) | 71 | 71.5 | 71.5 | 71.5 |
| D | Effective Seat Tube Angle (°) | 72 | 72 | 72 | 72 |
| E | Chainstay (MM) | 537 | 537 | 537 | 537 |
| F | BB Drop (MM) | 55 | 55 | 55 | 55 |
| G | Head Tube Length (MM) | 185 | 195 | 170 | 220 |
| H | Fork Length (MM) | 462 | 462 | 462 | 462 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1176 | 1185 | 1164 | 1180 |
| K | Stack (MM) | 654 | 666 | 642 | 690 |
| L | Reach (MM) | 387 | 399 | 386 | 386 |
Wheel diameter / Size
A
Große
(MM)
s
450
m
500
l
550
xl
600
B
Effective Top Tube
(MM)
s
600
m
615
l
595
xl
610
C
Head Tube Angle
(°)
s
71
m
71.5
l
71.5
xl
71.5
D
Effective Seat Tube Angle
(°)
s
72
m
72
l
72
xl
72
E
Chainstay
(MM)
s
537
m
537
l
537
xl
537
F
BB Drop
(MM)
s
55
m
55
l
55
xl
55
G
Head Tube Length
(MM)
s
185
m
195
l
170
xl
220
H
Fork Length
(MM)
s
462
m
462
l
462
xl
462
I
Fork Offset
(MM)
s
45
m
45
l
45
xl
45
J
Wheelbase
(MM)
s
1176
m
1185
l
1164
xl
1180
K
Stack
(MM)
s
654
m
666
l
642
xl
690
L
Reach
(MM)
s
387
m
399
l
386
xl
386
