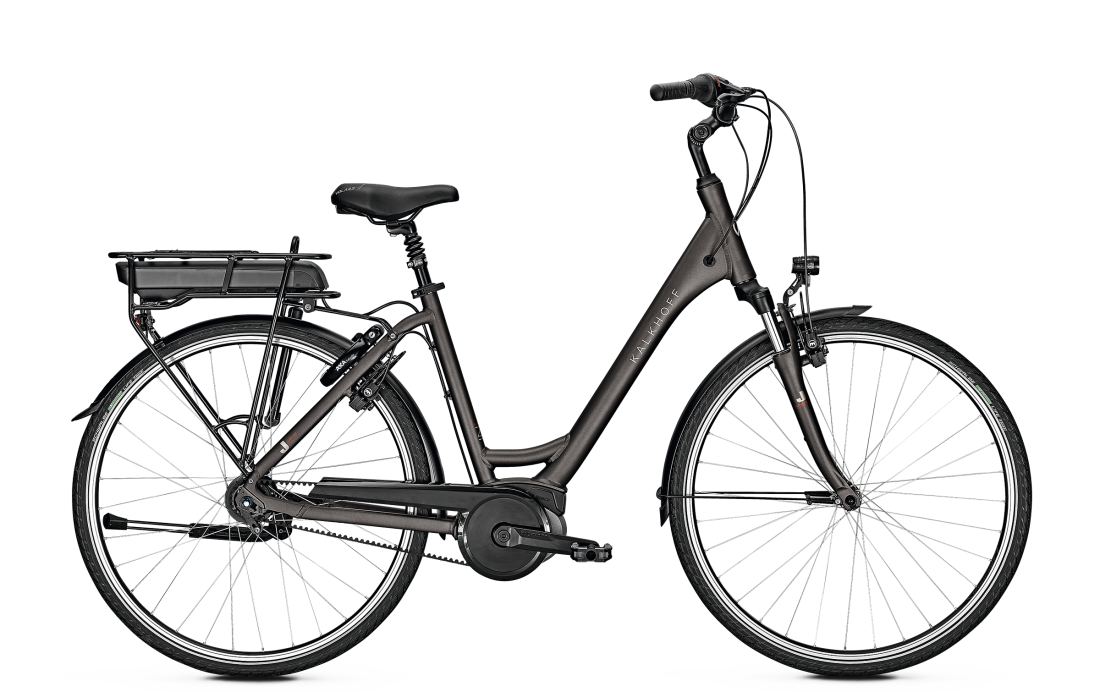

JUBILEE EXCITE B7
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Concept |
| Bremssystem | Magura HS11, hydraulische Felgenbremse |
| Bottom bracket | Integriert in Mittelmotor |
| Schutzblech Beschreibung | Kunststoff, mit Kantenschutz |
| Schaltung | 7-G Shimano Nexus |
| Fahrradständer Beschreibung | Hinterbauständer |
| Rücklichtart | AXA Blueline, LED mit Standlicht |
| Zulässiges Gesamtgewicht | 130 kg |
| Schalthebel | Shimano Nexus |
| Zahnkranz | Gates Carbondrive |
| Felgen | Concept, geöst |
| Motor Description | Bosch Active Line, 36 V / 250 W / 40 Nm |
| Display description | Bosch Purion, LCD Display mit Schiebehilfe |
| Battery Name | Bosch PowerPack Li-Ion 36 V |
Geometrie
| Wheel diameter / Size | XS | S | M | L | |
|---|---|---|---|---|---|
| A | Große (MM) | 450 | 450 | 500 | 550 |
| B | Effective Top Tube (MM) | 595 | 600 | 615 | 630 |
| C | Head Tube Angle (°) | 72 | 70.5 | 70.5 | 70.5 |
| D | Effective Seat Tube Angle (°) | 73 | 72.5 | 72.5 | 72.5 |
| E | Chainstay (MM) | 470 | 490 | 490 | 490 |
| F | BB Drop (MM) | 40 | 60 | 60 | 60 |
| G | Head Tube Length (MM) | 185 | 185 | 195 | 195 |
| H | Fork Length (MM) | 440 | 460 | 460 | 460 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1110 | 1138 | 1154 | 1169 |
| K | Stack (MM) | 623 | 656 | 665 | 665 |
| L | Reach (MM) | 404 | 393 | 405 | 420 |
Wheel diameter / Size
A
Große
(MM)
xs
450
s
450
m
500
l
550
B
Effective Top Tube
(MM)
xs
595
s
600
m
615
l
630
C
Head Tube Angle
(°)
xs
72
s
70.5
m
70.5
l
70.5
D
Effective Seat Tube Angle
(°)
xs
73
s
72.5
m
72.5
l
72.5
E
Chainstay
(MM)
xs
470
s
490
m
490
l
490
F
BB Drop
(MM)
xs
40
s
60
m
60
l
60
G
Head Tube Length
(MM)
xs
185
s
185
m
195
l
195
H
Fork Length
(MM)
xs
440
s
460
m
460
l
460
I
Fork Offset
(MM)
xs
45
s
45
m
45
l
45
J
Wheelbase
(MM)
xs
1110
s
1138
m
1154
l
1169
K
Stack
(MM)
xs
623
s
656
m
665
l
665
L
Reach
(MM)
xs
404
s
393
m
405
l
420
