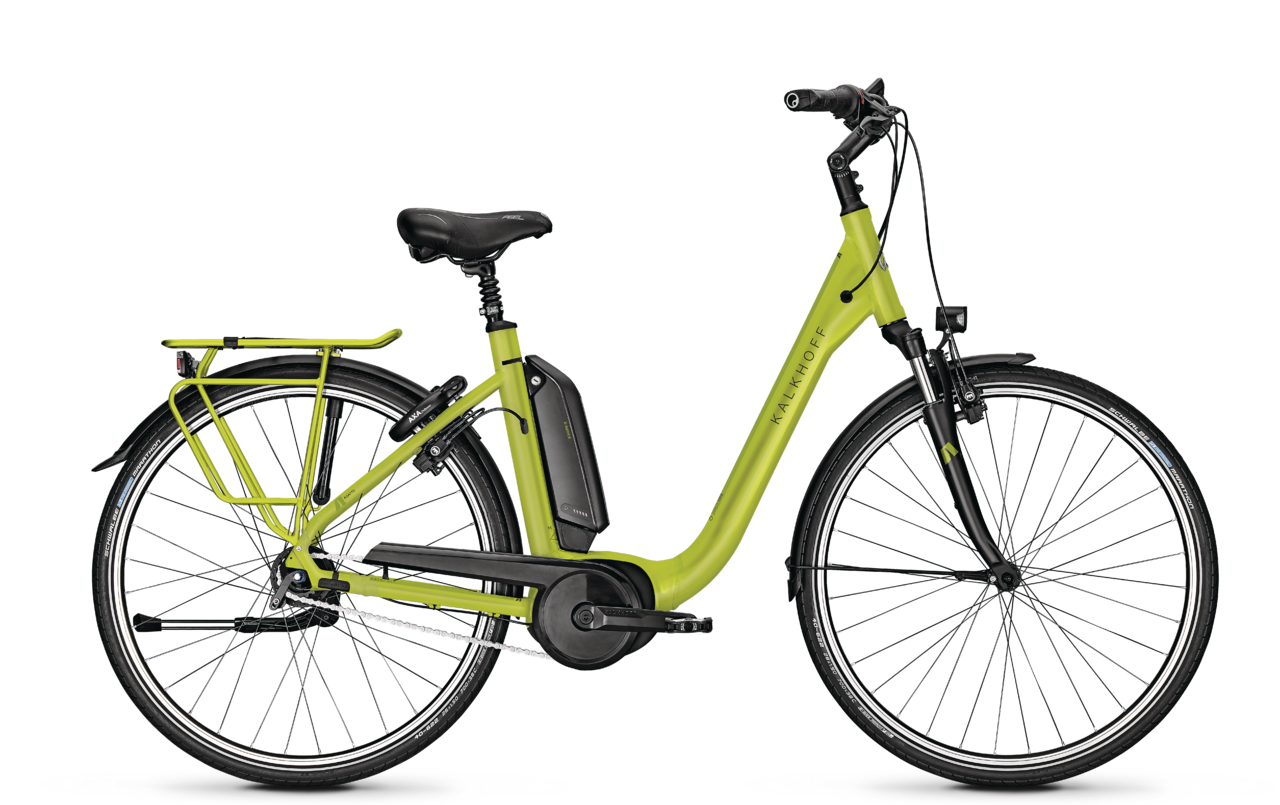

AGATTU 3.B ADVANCE
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Concept |
| Bremssystem | Magura HS11, hydraulische Felgenbremse |
| Bottom bracket | Integriert in Mittelmotor |
| Schutzblech Beschreibung | Kunststoff, mit Kantenschutz |
| Schaltung | 8-G Shimano Nexus |
| Fahrradständer Beschreibung | Hinterbauständer |
| Vorderlichtart | Herrmans H-Trace, LED |
| Zulässiges Gesamtgewicht | 130 kg |
| Schalthebel | Shimano Nexus |
| Zahnkranz | Shimano, starr |
| Felgen | Concept, geöst |
| Motor Description | Bosch Active Line Plus, 36 V / 250 W / 50 Nm |
| Display description | Bosch Intuvia LCD, mit Nahbedienteil und Schiebehilfe |
| Battery Name | Bosch PowerPack Li-Ion 36 V |
Geometrie
| Wheel diameter / Size | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| A | Große (MM) | 450 | 450 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 600 | 620 | 630 | 640 | 650 |
| C | Head Tube Angle (°) | 71 | 69.5 | 70.5 | 71 | 71.5 |
| D | Effective Seat Tube Angle (°) | 73 | 73.5 | 73.5 | 73.5 | 73.7 |
| E | Chainstay (MM) | 455 | 488 | 488 | 488 | 488 |
| F | BB Drop (MM) | 40 | 60 | 60 | 60 | 60 |
| G | Head Tube Length (MM) | 185 | 185 | 195 | 207 | 220 |
| H | Fork Length (MM) | 445 | 467 | 467 | 467 | 467 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1111 | 1179 | 1179 | 1184 | 1191 |
| K | Stack (MM) | 619 | 653 | 667 | 680 | 695 |
| L | Reach (MM) | 411 | 425 | 433 | 438 | 447 |
Wheel diameter / Size
A
Große
(MM)
xs
450
s
450
m
500
l
550
xl
600
B
Effective Top Tube
(MM)
xs
600
s
620
m
630
l
640
xl
650
C
Head Tube Angle
(°)
xs
71
s
69.5
m
70.5
l
71
xl
71.5
D
Effective Seat Tube Angle
(°)
xs
73
s
73.5
m
73.5
l
73.5
xl
73.7
E
Chainstay
(MM)
xs
455
s
488
m
488
l
488
xl
488
F
BB Drop
(MM)
xs
40
s
60
m
60
l
60
xl
60
G
Head Tube Length
(MM)
xs
185
s
185
m
195
l
207
xl
220
H
Fork Length
(MM)
xs
445
s
467
m
467
l
467
xl
467
I
Fork Offset
(MM)
xs
45
s
45
m
45
l
45
xl
45
J
Wheelbase
(MM)
xs
1111
s
1179
m
1179
l
1184
xl
1191
K
Stack
(MM)
xs
619
s
653
m
667
l
680
xl
695
L
Reach
(MM)
xs
411
s
425
m
433
l
438
xl
447
