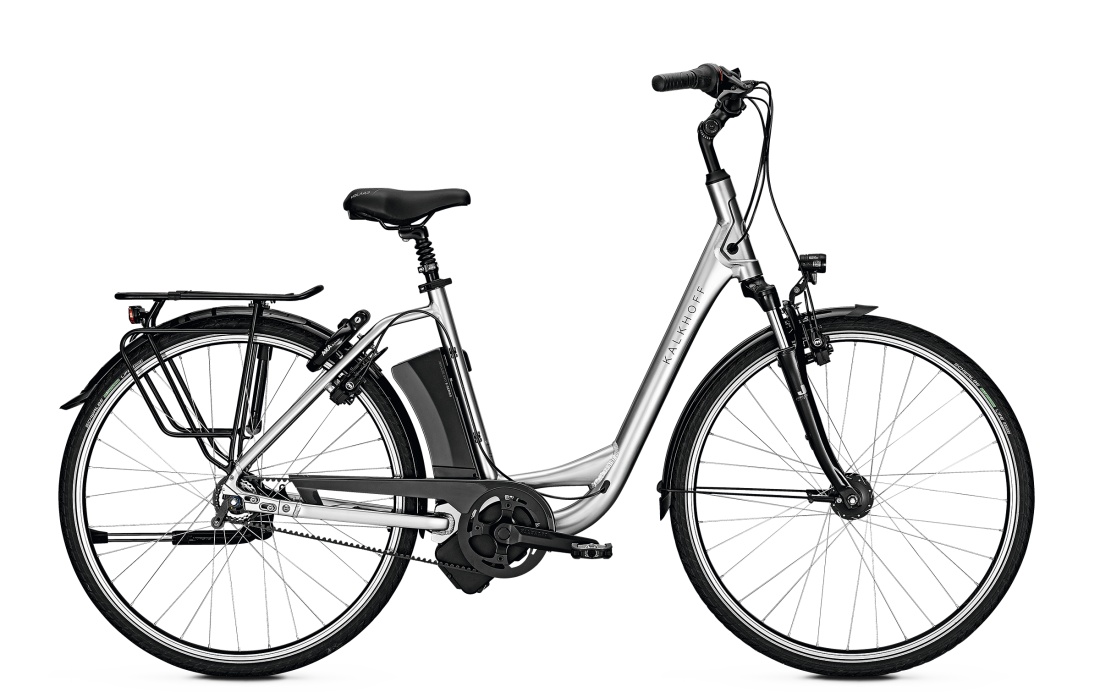

JUBILEE EXCITE i7
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Concept |
| Bremssystem | Magura HS11, hydraulische Felgenbremse |
| Bottom bracket | Integriert in Mittelmotor |
| Schutzblech Beschreibung | Kunststoff, mit Kantenschutz |
| Schaltung | 7-G Shimano Nexus |
| Fahrradständer Beschreibung | Hinterbauständer |
| Vorderlichtart | AXA Blueline, LED mit Standlicht |
| Zulässiges Gesamtgewicht | 130 kg |
| Schalthebel | Shimano Nexus |
| Zahnkranz | Gates Carbondrive |
| Felgen | Concept, geöst |
| Motor Description | Impulse 2.0, 36 V / 250 W, mit Shift-Sensor Technologie |
| Display description | Impulse Big LCD, mit Nahbedienteil und Schiebehilfe |
| Battery Name | Impulse Li-Ion 36 V |
Geometrie
| Wheel diameter / Size | XS | S | M | L | |
|---|---|---|---|---|---|
| A | Große (MM) | 460 | 460 | 500 | 550 |
| B | Effective Top Tube (MM) | 595 | 600 | 615 | 630 |
| C | Head Tube Angle (°) | 72 | 71 | 71.5 | 71.5 |
| D | Effective Seat Tube Angle (°) | 73 | 73.5 | 73.5 | 73 |
| E | Chainstay (MM) | 500 | 526 | 526 | 526 |
| F | BB Drop (MM) | 40 | 60 | 60 | 55 |
| G | Head Tube Length (MM) | 185 | 185 | 195 | 195 |
| H | Fork Length (MM) | 440 | 460 | 460 | 460 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1140 | 1181 | 1191 | 1201 |
| K | Stack (MM) | 629 | 664 | 676 | 671 |
| L | Reach (MM) | 403 | 403 | 415 | 425 |
Wheel diameter / Size
A
Große
(MM)
xs
460
s
460
m
500
l
550
B
Effective Top Tube
(MM)
xs
595
s
600
m
615
l
630
C
Head Tube Angle
(°)
xs
72
s
71
m
71.5
l
71.5
D
Effective Seat Tube Angle
(°)
xs
73
s
73.5
m
73.5
l
73
E
Chainstay
(MM)
xs
500
s
526
m
526
l
526
F
BB Drop
(MM)
xs
40
s
60
m
60
l
55
G
Head Tube Length
(MM)
xs
185
s
185
m
195
l
195
H
Fork Length
(MM)
xs
440
s
460
m
460
l
460
I
Fork Offset
(MM)
xs
45
s
45
m
45
l
45
J
Wheelbase
(MM)
xs
1140
s
1181
m
1191
l
1201
K
Stack
(MM)
xs
629
s
664
m
676
l
671
L
Reach
(MM)
xs
403
s
403
m
415
l
425
