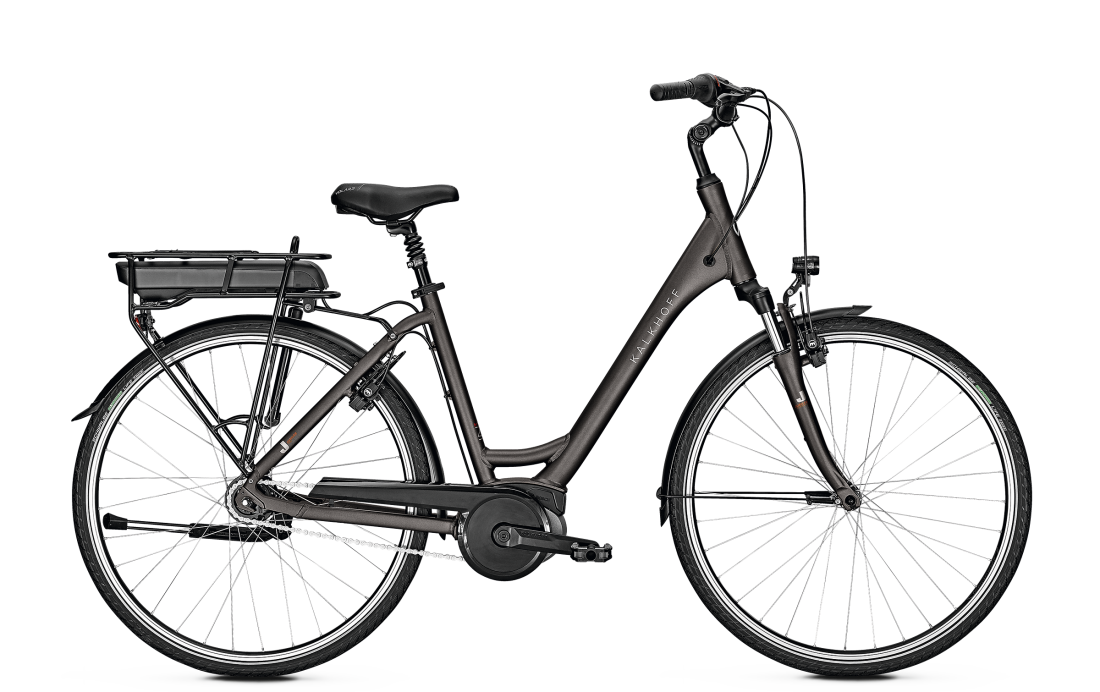

JUBILEE ADVANCE B7

ab -

Specifications

Kurbelgarnitur Beschreibung Concept
Bremssystem Magura HS11, hydraulische Felgenbremse
Bottom bracket Integriert in Mittelmotor
Schutzblech Beschreibung Kunststoff, mit Kantenschutz
Schaltung 7-G Shimano Nexus
Fahrradständer Beschreibung Hinterbauständer
Vorderlichtart AXA Blueline, LED mit Standlicht
Zulässiges Gesamtgewicht 130 kg
Schalthebel Shimano Nexus
Zahnkranz Shimano, starr
Felgen Concept, geöst
Motor Description Bosch Active Line, 36 V / 250 W / 40 Nm
Display description Bosch Purion, LCD Display mit Schiebehilfe
Battery Name Bosch PowerPack Li-Ion 36 V

Geometrie

  Wheel diameter / Size XS S M L
A Große (MM) 450 450 500 550
B Effective Top Tube (MM) 595 600 615 630
C Head Tube Angle (°) 72 70.5 70.5 70.5
D Effective Seat Tube Angle (°) 73 72.5 72.5 72.5
E Chainstay (MM) 465 485 485 485
F BB Drop (MM) 40 60 60 60
G Head Tube Length (MM) 185 185 195 195
H Fork Length (MM) 440 460 460 460
I Fork Offset (MM) 45 45 45 45
J Wheelbase (MM) 1104 1133 1149 1163
K Stack (MM) 623 662 671 671
L Reach (MM) 404 391 403 418
Wheel diameter / Size
xs
450
s
450
m
500
l
550
xs
595
s
600
m
615
l
630
xs
72
s
70.5
m
70.5
l
70.5
xs
73
s
72.5
m
72.5
l
72.5
xs
465
s
485
m
485
l
485
xs
40
s
60
m
60
l
60
xs
185
s
185
m
195
l
195
xs
440
s
460
m
460
l
460
xs
45
s
45
m
45
l
45
xs
1104
s
1133
m
1149
l
1163
xs
623
s
662
m
671
l
671
xs
404
s
391
m
403
l
418
