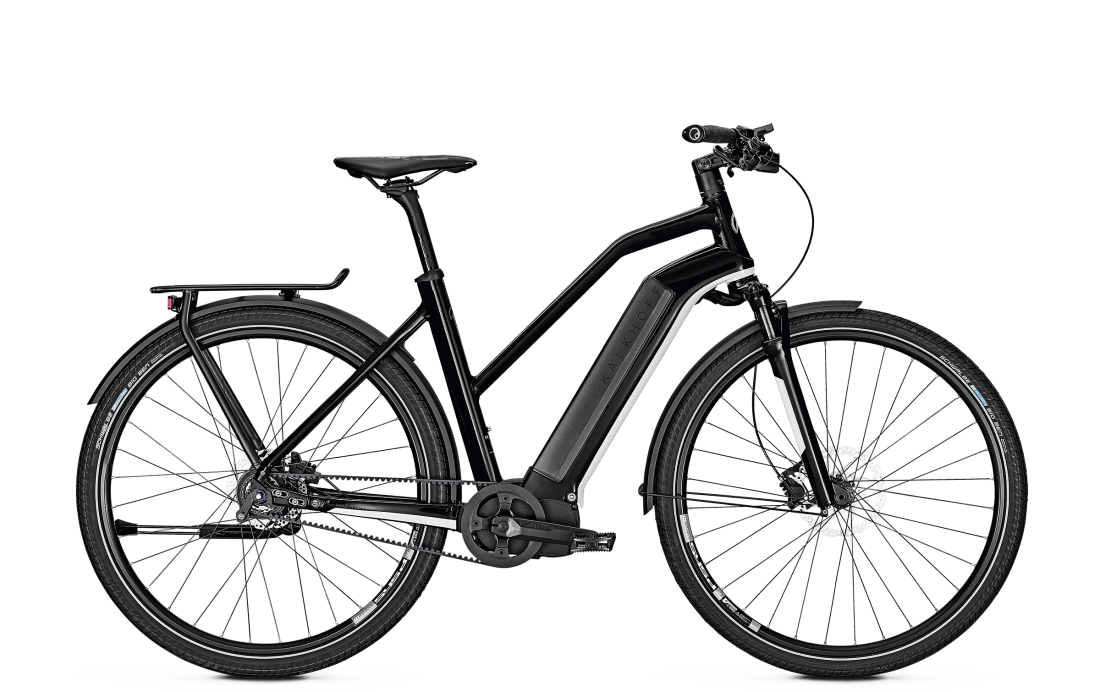

KALKHOFF INTEGRALE EXCITE i8
ab
-
Specifications
| Kurbelgarnitur Beschreibung | Concept |
| Bremssystem | Shimano M396, hydraulische Scheibenbremse - 160 Bremsscheiben |
| Bottom bracket | Integriert in Mittelmotor |
| Schutzblech Beschreibung | Aluminium, lackiert |
| Schaltung | 8-G Shimano Alfine |
| Fahrradständer Beschreibung | Hinterbauständer |
| Vorderlichtart | Concept EX Twin, 100 Lux, LED |
| Zulässiges Gesamtgewicht | 130 kg |
| Schalthebel | Shimano Alfine |
| Zahnkranz | Gates Carbondrive |
| Felgen | DT Swiss 545D, geöst |
| Motor Description | Impulse Evo RS, 36 V / 250 W, mit Shift-Sensor Technologie |
| Display description | Impulse Evo Smart Compact, mit Bluetooth und USB Ladebuchse |
| Battery Name | Impulse Evo Li-Ion 36 V |
Geometrie
| Wheel diameter / Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Große (MM) | 475 | 500 | 550 | 600 |
| B | Effective Top Tube (MM) | 586 | 597 | 609 | 621 |
| C | Head Tube Angle (°) | 71.5 | 71.5 | 71.5 | 71.5 |
| D | Effective Seat Tube Angle (°) | 74 | 73 | 72 | 71 |
| E | Chainstay (MM) | 468 | 468 | 468 | 468 |
| F | BB Drop (MM) | 55 | 55 | 55 | 55 |
| G | Head Tube Length (MM) | 145 | 157.5 | 170 | 182.5 |
| H | Fork Length (MM) | 462 | 462 | 462 | 462 |
| I | Fork Offset (MM) | 45 | 45 | 45 | 45 |
| J | Wheelbase (MM) | 1109 | 1109 | 1109 | 1109 |
| K | Stack (MM) | 616 | 628 | 640 | 652 |
| L | Reach (MM) | 409 | 405 | 402 | 397 |
Wheel diameter / Size
A
Große
(MM)
s
475
m
500
l
550
xl
600
B
Effective Top Tube
(MM)
s
586
m
597
l
609
xl
621
C
Head Tube Angle
(°)
s
71.5
m
71.5
l
71.5
xl
71.5
D
Effective Seat Tube Angle
(°)
s
74
m
73
l
72
xl
71
E
Chainstay
(MM)
s
468
m
468
l
468
xl
468
F
BB Drop
(MM)
s
55
m
55
l
55
xl
55
G
Head Tube Length
(MM)
s
145
m
157.5
l
170
xl
182.5
H
Fork Length
(MM)
s
462
m
462
l
462
xl
462
I
Fork Offset
(MM)
s
45
m
45
l
45
xl
45
J
Wheelbase
(MM)
s
1109
m
1109
l
1109
xl
1109
K
Stack
(MM)
s
616
m
628
l
640
xl
652
L
Reach
(MM)
s
409
m
405
l
402
xl
397
